BenQ AH30ST – 1080p Short‑Throw LED Golf Simulator Projector | 3,000 Lumens
BenQ AH30ST – 1080p Short‑Throw LED Golf Simulator Projector | 3,000 Lumens
The BenQ AH30ST is a Full HD short‑throw golf simulator projector built on a DLP platform, delivering brilliant 3,000 ANSI lumens of 4LED brightness, superb color accuracy, and a compact design made for tight simulator setups.
Key Advantages
- Full HD 1080p Resolution (1920 × 1080) for precise visuals
- 3,000 ANSI Lumens Brightness with 4LED light source
- Long-lasting Light: 20,000 hrs normal / 30,000 hrs eco
- Short Throw: 0.69–0.83 throw ratio with 1.2× zoom
- Auto Screen Fill adapts to various screen aspect ratios (16:9, 4:3, etc.)
- 2D Keystone ±30° for both vertical and horizontal correction
- Golf Mode and multiple picture presets (Cinema, Game, sRGB, etc.)
- Low Input Lag: 16.7 ms at 1080p/60Hz
- Wide Connectivity: 2× HDMI (1.4a/HDCP1.4), 2× USB‑A, RS232, Audio out
- Built-in 10W speaker for quick sound output
- Lightweight: Only 5.84 lbs (2.65 kg) with compact body
Perfect for Golf Simulation
- Great fit for **8′×8′ or small sunken enclosures** or tight ceiling spaces
- Supports any impact screen with flexible aspect fill

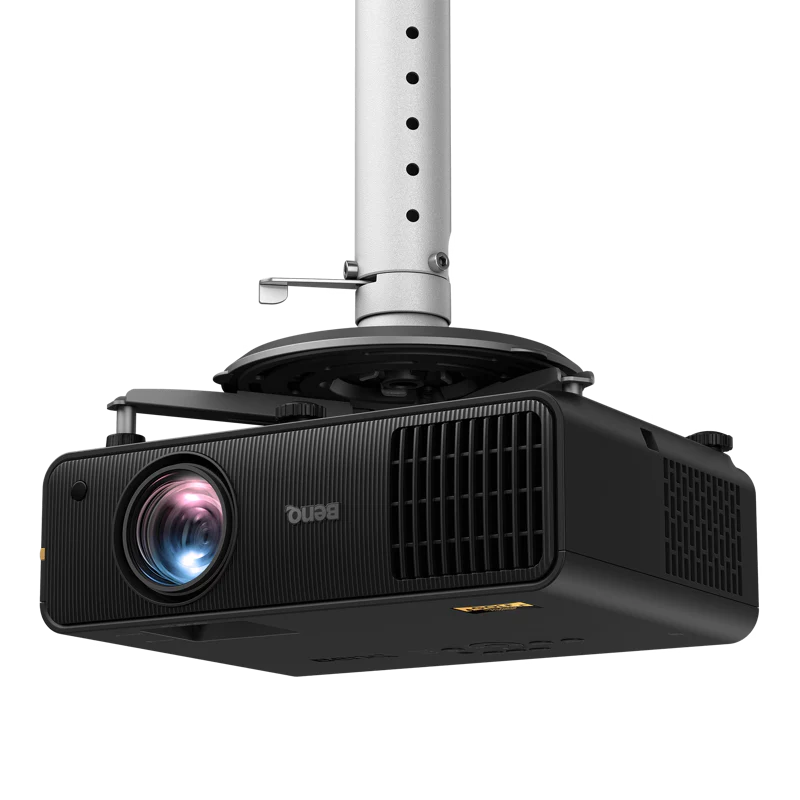

- Compatible with **universal ceiling mounts**
Full Technical Specs
- Display: 1080p, 16:9, 20,000:1 contrast, 30-bit color
- Optical: Throw 0.69–0.83, zoom 1.2×, offset 102.5%
- Lens: f=10.2–12.24 mm; F=2.6–2.78
- Picture Modes: Golf, Game, Cinema, sRGB, Bright, User presets
- Input Lag: 16.7 ms @ 1080p60
- Connectivity: 2× HDMI 1.4a, 2× USB‑A (1 power), RS232, Audio out
- Light Source: 4LED, 20k hrs (Normal), 30k hrs (Eco)
- Audio: 10W internal speaker
- Power: 237W typical; <0.5W standby
- Noise: 32 dBA normal / 28 dBA eco
- Dimensions: 11.95″×4.23″×8.69″ ; Weight: 5.84 lbs
What's In the Box
- BenQ AH30ST Projector
- Remote & battery
- Power cord
- Lens cover
- Quick start guide & warranty card
