BenQ AK700ST - 4K UHD Short-Throw Golf Simulator Projector | 4,000 Lumens
BenQ AK700ST - 4K UHD Short-Throw Laser Projector for Golf Simulators
The BenQ AK700ST is a dedicated 4K UHD short-throw laser projector designed specifically for golf simulation, delivering exceptional clarity, vibrant colors, and immersive visuals. With 4,000 ANSI lumens, HDR support, and a 0.69 to 0.83:1 throw ratio, it provides bright, detailed images even in well-lit environments. Its Golf Mode enhances color accuracy to reflect true-to-life course conditions, making it an excellent choice for both home and professional golf simulator setups.
Why Choose the BenQ AK700ST for Your Golf Simulator?
✔ True 4K UHD Resolution (3840x2160) – Delivers ultra-detailed, razor-sharp visuals for a lifelike golf experience.
✔ High-Brightness 4,000 ANSI Lumens – Ensures a clear, bright image even in rooms with ambient lighting.
✔ Safe Short-Throw Design – The 0.69–0.83:1 throw ratio allows placement behind the golfer, reducing collision risks and eliminating shadows on the screen.
✔ HDR10 & HLG Support – Enhanced contrast and color accuracy for a more immersive simulation.
✔ Golf Mode Color Optimization – Custom-tuned for accurate greens, blues, and course textures.
✔ Auto Screen Fit Function – Simplifies setup by automatically adjusting to your impact screen's aspect ratio, supporting 16:9, 16:10, 4:3, and 1:1.
✔ Long-Lasting Laser Light Source – 20,000-hour maintenance-free operation, eliminating bulb replacements.
✔ Low Latency & Smooth Playback – Designed for real-time golf simulation with minimal input lag.
✔ Comprehensive Connectivity – Dual HDMI 2.0, USB-C with DisplayPort, USB-A power, LAN, and RS232 for seamless integration with launch monitors and golf simulation software.
✔ Whisper-Quiet Operation – Ensures a distraction-free experience.
Technical Specifications
- Resolution: 4K UHD (3840x2160)
- Brightness: 4,000 ANSI lumens
- Contrast Ratio: 3,000,000:1
- Throw Ratio: 0.69 to 0.83:1
- HDR Support: HDR10 & HLG
- Golf Mode: Yes
- Auto Keystone Correction: Vertical and horizontal ±30°
- Auto Screen Fit: Yes
- Connectivity: 2x HDMI 2.0, 1x USB-C (DP), 1x USB-A, 1x USB-A (Wireless Dongle), 1x RS232C, 1x Mini Jack Audio out
- Screen Size: 32” - 200”
- Noise Level: 32dB (Eco Mode)

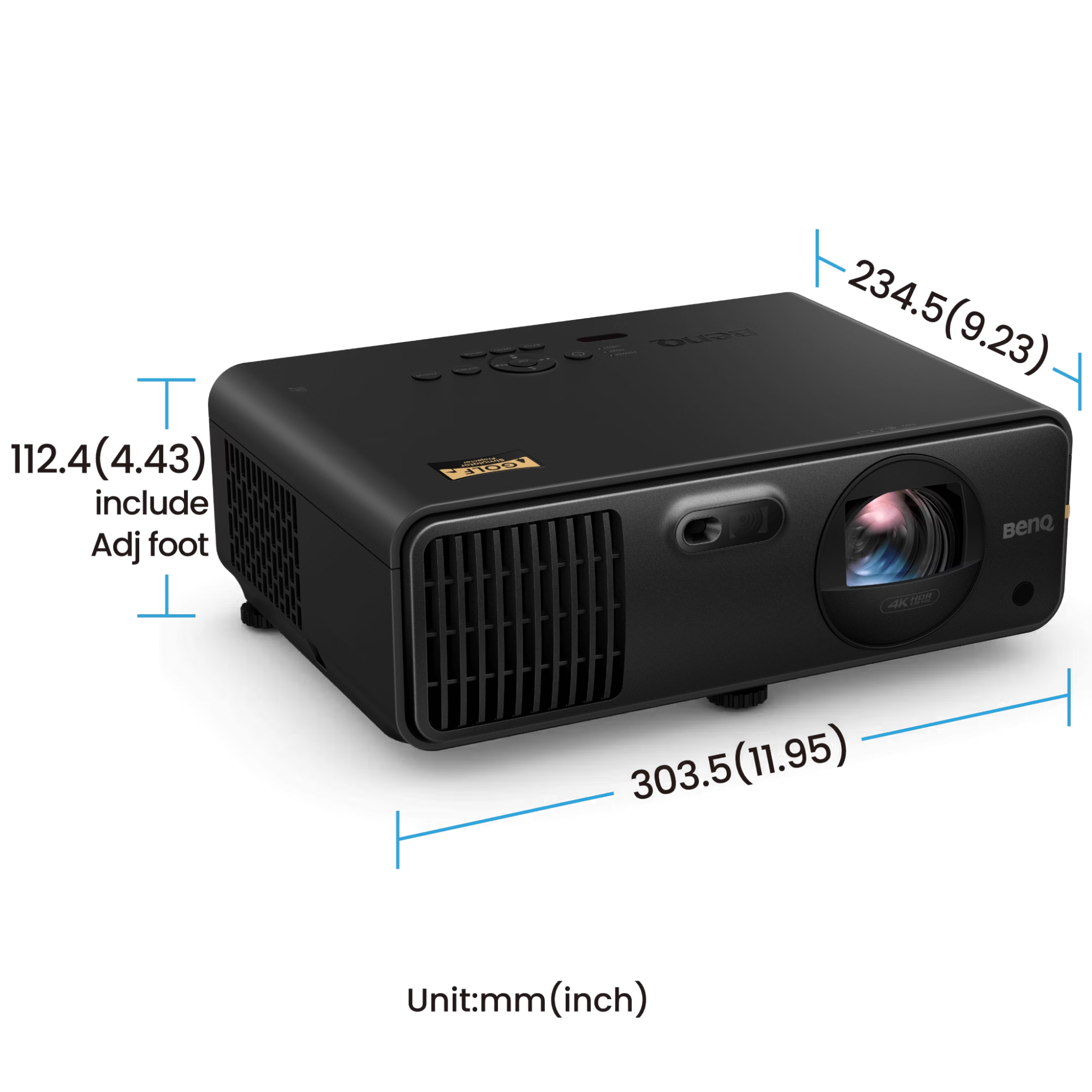

- Dimensions: 11.9” x 4.4” x 9.2”
- Weight: 7.5 lbs
Who is This Projector Best For?
✅ Golfers seeking a dedicated 4K projector with accurate color representation
✅ Users needing flexible short-throw projection for simulator enclosures
✅ Rooms with ambient light requiring high-lumen performance
✅ Those looking for a professional-grade golf simulator projector with minimal input lag
Choose options
The gold standard for golf simulator projection.

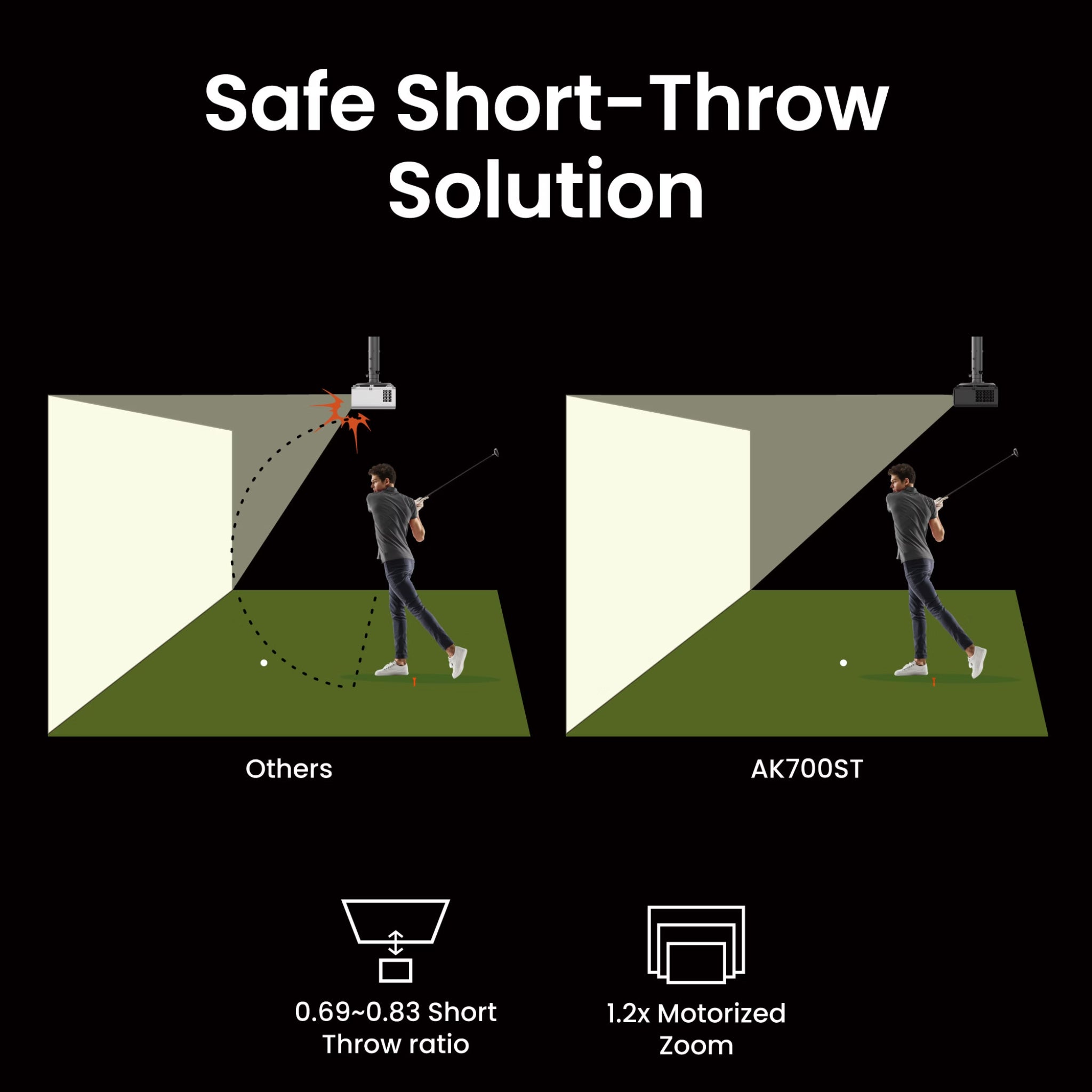

A 0.69–0.83:1 throw ratio means the AK700ST mounts behind you, not in front. No shadows on the screen from your body, no risk of hitting the projector mid-swing. This is the most important feature for a golf simulator projector and most projectors don't offer it.
3840×2160 native resolution with a laser light source rated for 20,000 hours — no bulbs to replace, no color degradation over time. The image stays sharp and vivid for years without maintenance.
Bright enough to deliver a clear, vivid image even in a room that isn't completely blacked out. Most home simulator bays aren't fully dark — 4,000 lumens handles real-world lighting conditions comfortably.
A dedicated Golf Mode fine-tunes color output specifically for course simulation — accurate greens, realistic fairway textures, and true-to-life sky blues. Purpose-built for golf, not repurposed from home theater.
Auto Screen Fit automatically adjusts the image to match your impact screen's aspect ratio — 16:9, 16:10, 4:3, or 1:1. Combined with ±30° auto keystone correction, getting a perfect rectangle on your screen takes minutes, not hours. And if your screen isn't a standard ratio? No problem — the AK700ST will auto-fill to whatever shape you have. No manual tweaking required.
Designed for real-time simulation with minimal input lag so the ball flight on screen stays in sync with your launch monitor data. Fan noise is 32dB in Eco Mode — quiet enough that it won't compete with your simulator audio.
The numbers

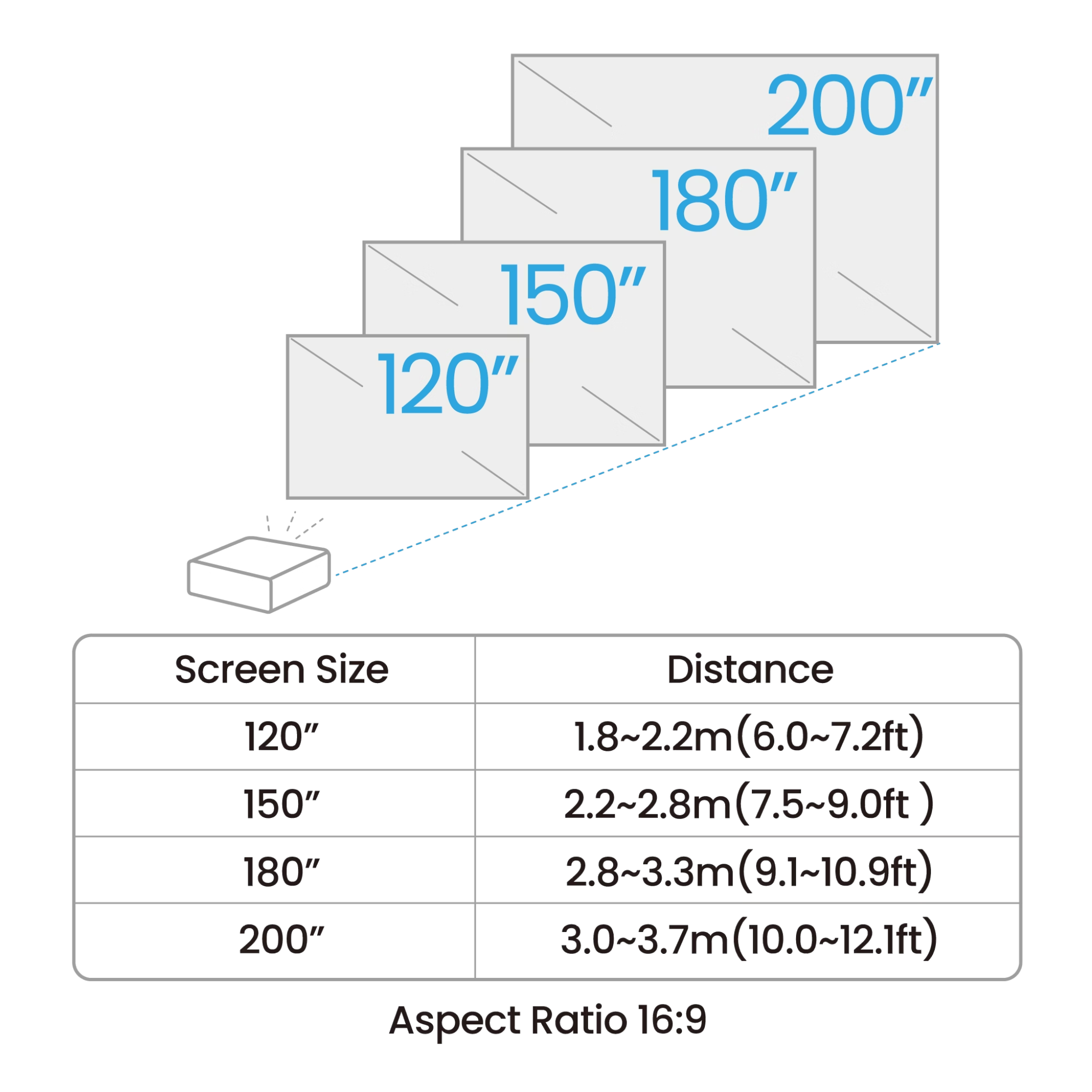

How far back does it need to sit?

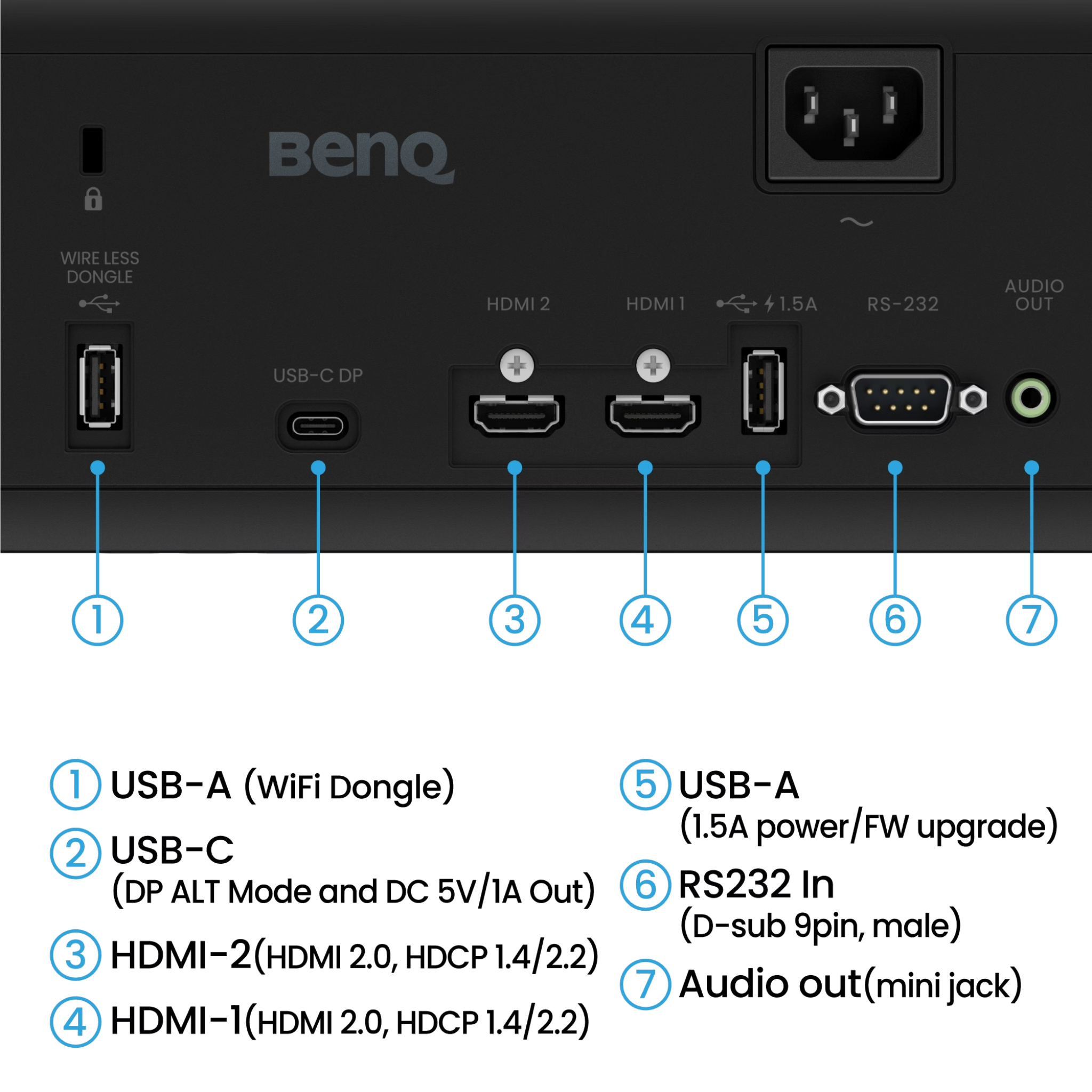

Ports & connections
In the box
- BenQ AK700ST Projector
- Power Cord
- HDMI Cable

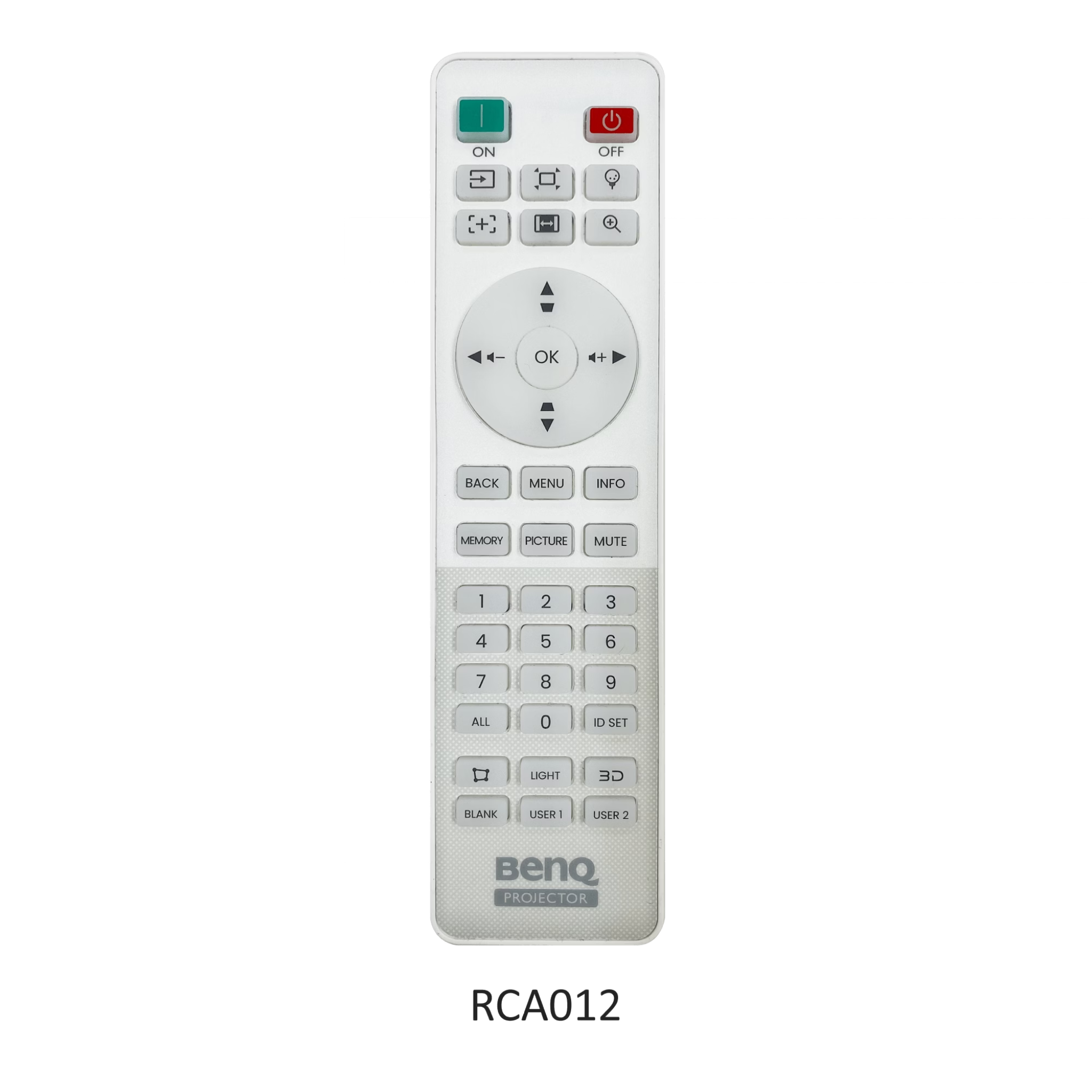

- Remote Control
- Batteries (for remote)
- Quick Start Guide & Documentation
- Wireless Dongle Port Cover
