SIG12 Golf Simulator Studio - Complete Package

The Largest SIG Studio. Maximum Immersion. For Dedicated Simulator Rooms.

The SIG12 Golf Simulator Studio is the flagship of The Indoor Golf Shop's Signature Series — the largest, most immersive enclosure they make. At 12'2" wide × 9'4" tall, the SIG12 delivers a massive 14'3" diagonal screen with 100% full-screen image fill and room to swing freely.

Built around the SIGPRO Premium Impact Screen (winner of MyGolfSpy's "Best Hitting Screen" award), the SIG12 Studio includes everything you need except the launch monitor and projector — enclosure, screen, landing pad turf, your choice of hitting mat, and all assembly hardware. Just add your preferred technology and step into a truly immersive golf experience.

For golfers with dedicated simulator rooms, high ceilings (10'+), and a commitment to the best home golf experience possible.

Key Benefits

✔ Largest SIG Enclosure
12'2" wide × 9'4" tall — the biggest screen and most immersive experience in the Signature Series.

✔ 14'3" Diagonal Screen
Massive 11'5" × 8'7" screen with 4:3 aspect ratio fills 100% of the viewing area — no letterboxing, no wasted space.

✔ SIGPRO Premium Impact Screen
Winner of MyGolfSpy's "Best Hitting Screen" award. Superior durability, reduced bounce-back, and quieter operation. Rated for 250 MPH ball strikes.

✔ Room to Swing
The taller 9'4" enclosure gives you more overhead clearance for full driver swings — ideal for taller golfers or those with high backswings.

✔ Complete Studio Package
Enclosure, screen, landing pad turf, and your choice of hitting mat — everything except the launch monitor and projector.

✔ Four Mat Options Including 4'×10' Double-Sided
The SIG12 accommodates all mat options including the 4'×10' double-sided mat for left/right-handed switching.

✔ Color-Coded Assembly
Push-pin poles and connectors are color-coded for quick, frustration-free setup despite the larger size.

✔ Professional Finish
Includes vinyl SIG Surround for a clean, polished look plus protective foam padding on all sides.

✔ Optional Premium Flooring
Upgrade to SIG12 Simulator Flooring with integrated hitting strip and putting green for a custom-install look.

Who Is This For?

✅ Golfers with dedicated simulator rooms and 10'+ ceilings
✅ Taller players who need extra overhead clearance for full swings
✅ Enthusiasts who want maximum immersion — the largest screen available in the SIG series
✅ Families with left AND right-handed players — compatible with 4'×10' double-sided mats
✅ Commercial-adjacent residential builds approaching professional installation quality
✅ Anyone upgrading from a SIG10 who wants more screen real estate and height

Package Options

Select your preferred hitting surface:

Technical Specifications

Full Enclosure Dimensions

• Width: 12'2" (146")
• Height: 9'4" (112")
• Depth: 5' (60")
• Total Depth with Mat: Approximately 16'

Screen Dimensions

• Width: 11'5" (137")
• Height: 8'7" (103")
• Diagonal: 14'3" (171")
• Aspect Ratio: 4:3
• Image Fill: 100% (no letterboxing)

Screen Specifications

• Material: Three-layer tight-knit polyester (SIGPRO Premium)
• Impact Rating: 250 MPH
• Projection: HD quality, front projection
• Edge Finish: Double-stitched black vinyl with grommets
• Independent Testing: MyGolfSpy "Best Hitting Screen" winner

Frame Construction

• Material: Powder-coated aluminum
• Tubing: 1.5" tubular framing system
• Assembly: Color-coded push-pin poles and quick-connect buttons
• Surround: Durable vinyl SIG Surround (blocks ambient light, protects walls)

Space Requirements

• Minimum Room Width: 12.5' (enclosure is 12'2" wide)
• Minimum Ceiling Height: 9'7" (enclosure is 9'4" tall; need 2-3" buffer)
• Recommended Ceiling Height: 10'+ for comfortable full swing
• Buffer Space: Allow 6" between top of enclosure and ceiling
• Depth Required: 5' for enclosure + hitting mat + swing clearance (typically 16-18' total room depth)

Important: The SIG12 requires significantly more ceiling height than the SIG8 or SIG10. If you have standard 8' or 9' ceilings, the SIG10 is likely a better fit. The SIG12 is designed for spaces with 10'+ ceilings or dedicated simulator rooms with proper clearance.

Hitting Surface Options

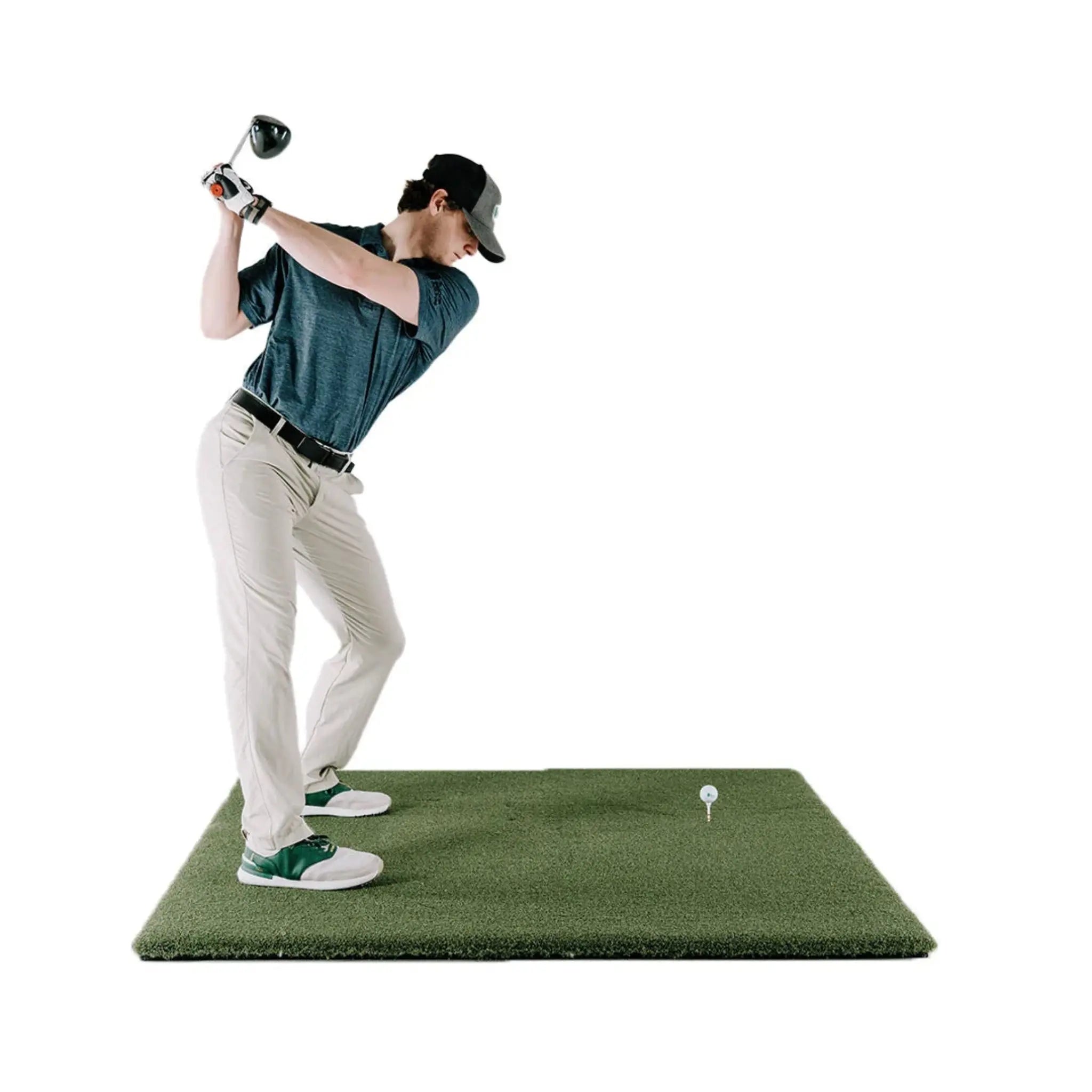

Fairway Series 5' × 5' Golf Mat

• Approximately 1" thick with realistic turf feel
• Accepts real tees
• Ideal for golfers seeking authentic feel
• Best for: Standard setups with single hitting position

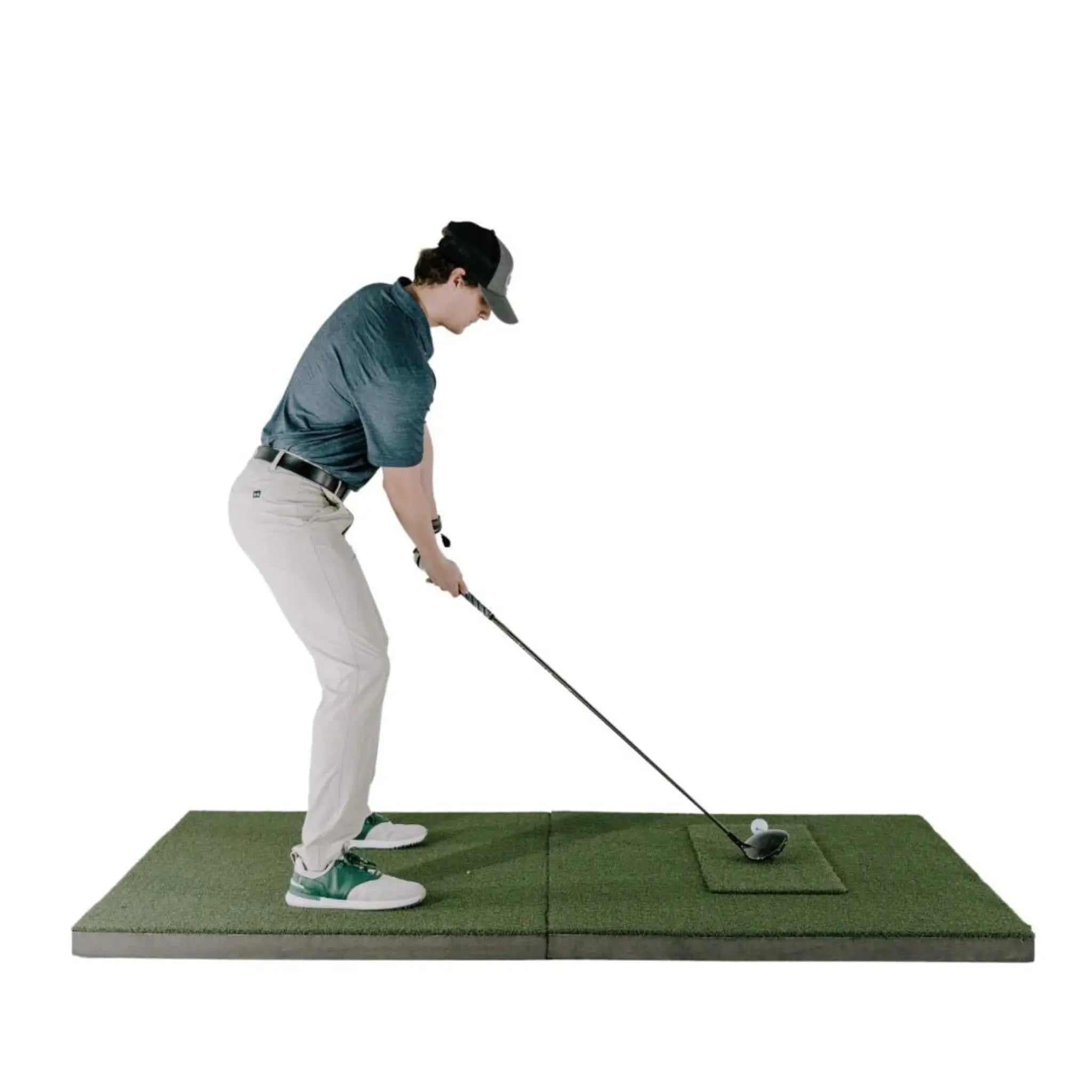

SIGPRO Softy 4' × 7' Golf Mat

• Easy on joints — soft foam backing for extended practice sessions
• Larger footprint accommodates floor-mounted launch monitors on the mat surface (level with ball)
• Best for: Players concerned about joint fatigue; setups with Garmin R10/R50, Mevo+, SkyTrak, or similar floor-mounted monitors

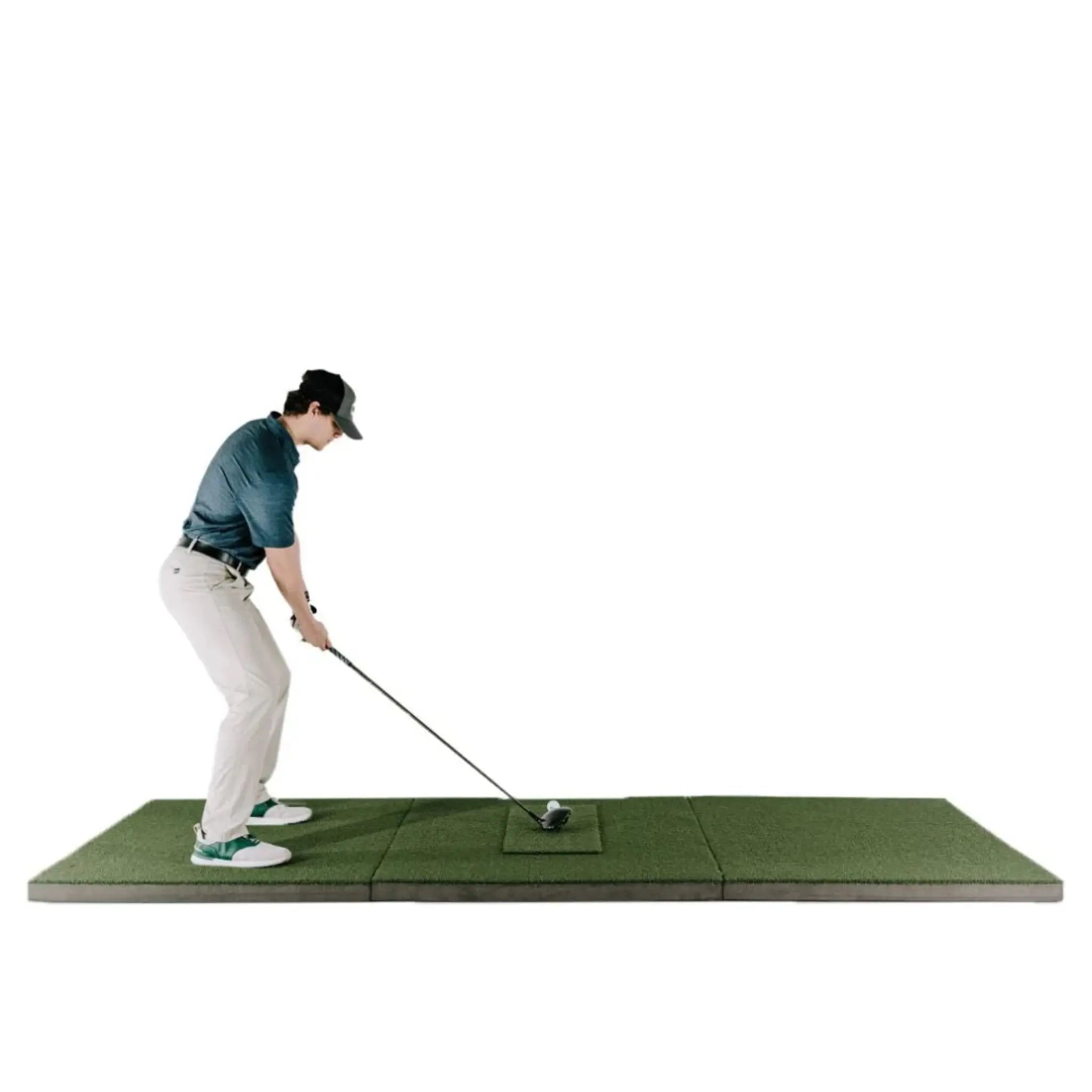

SIGPRO Softy 4' × 10' Double-Sided Golf Mat

• Center hitting strip accommodates both left and right-handed golfers
• No need to move the mat or reposition equipment between players
• Same joint-friendly soft foam construction as the 4'×7'
• Best for: Families, shared bays, or facilities with mixed-handedness players

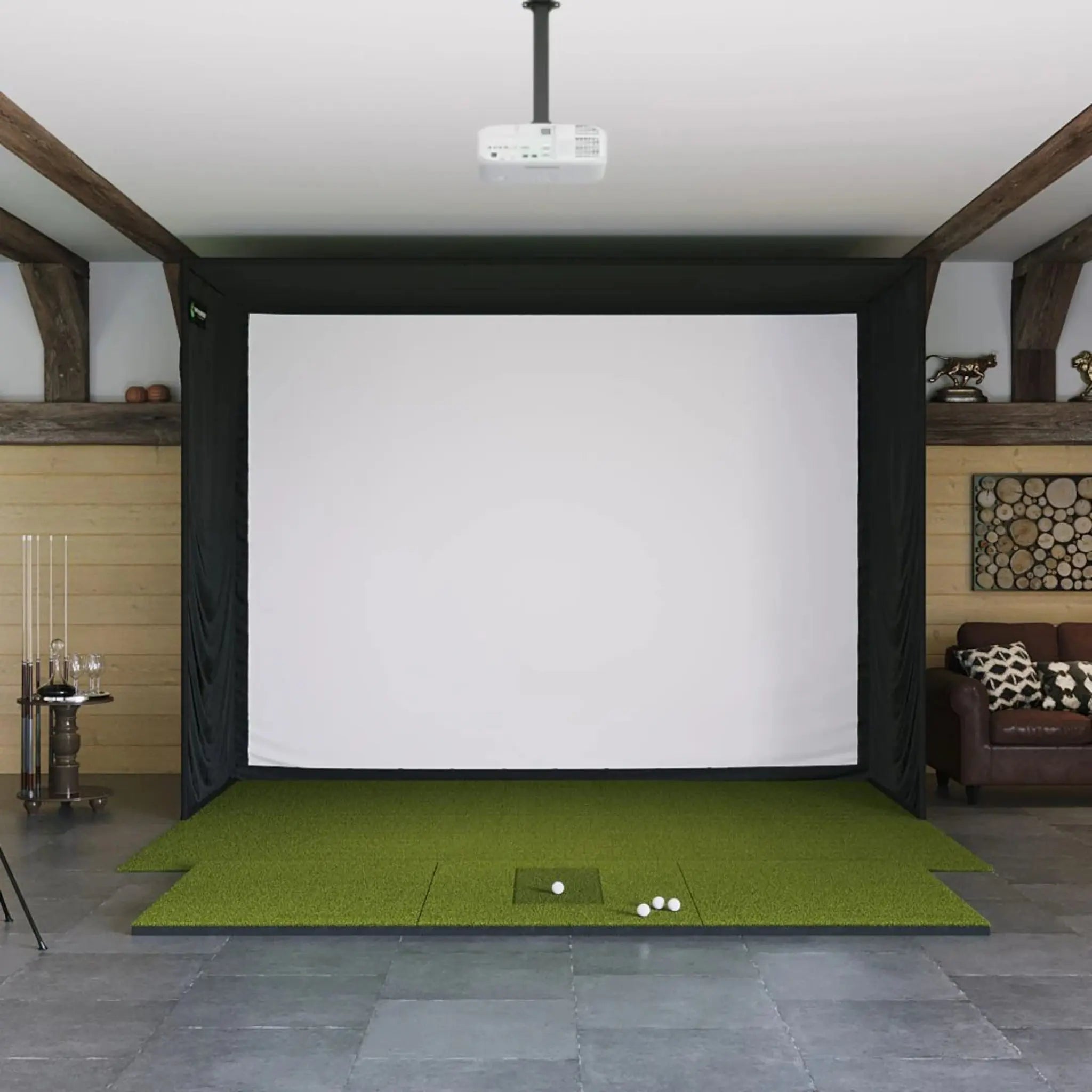

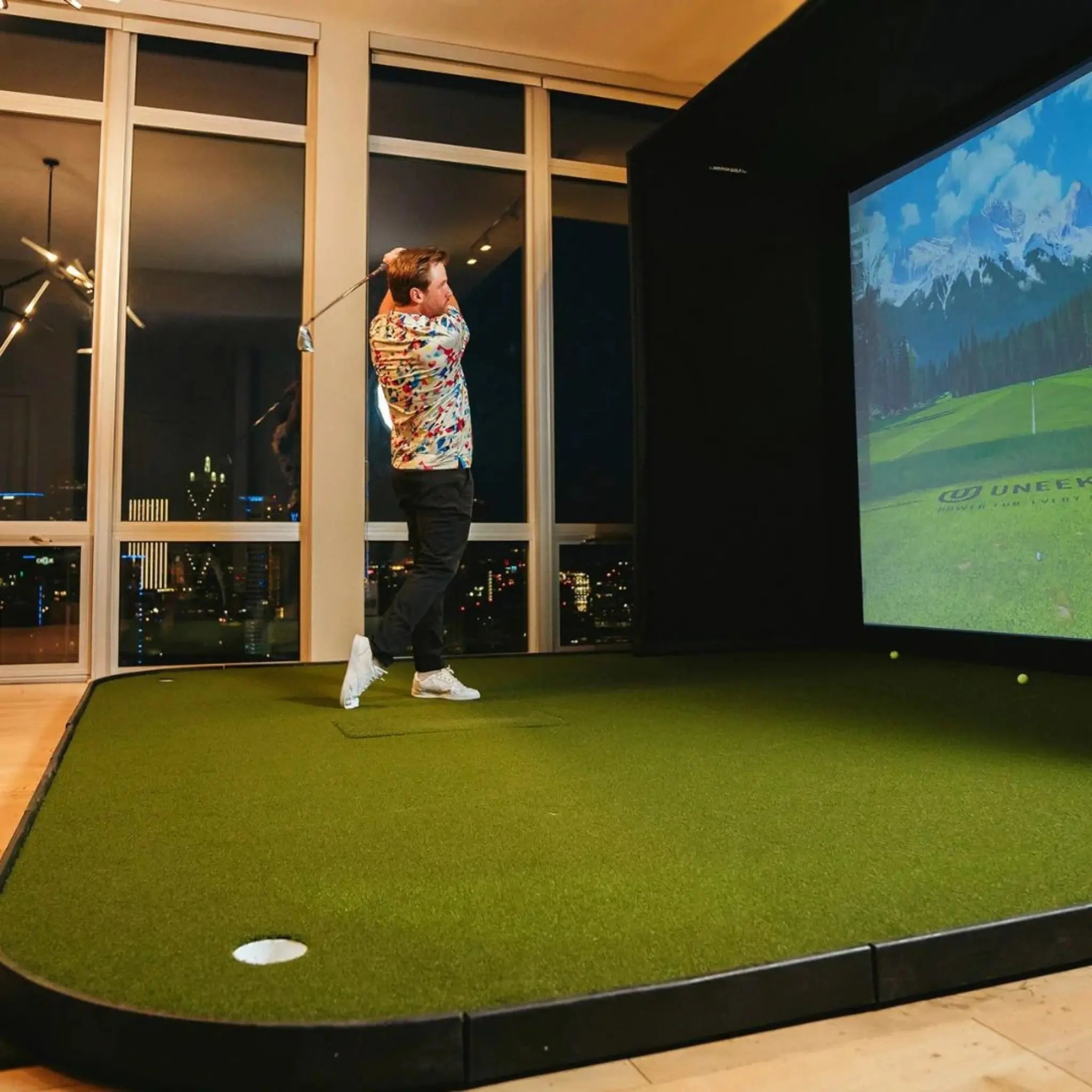

SIG12 Golf Simulator Flooring

• Premium custom-install look with DIY convenience
• Integrated hitting strip embedded in flooring
• Surrounding putting green with four cup positions (flags not included)
• Modular design for left and right-handed setups
• Maximizes putting/chipping area while conserving space
• Best for: Golfers who want professional aesthetics and serious short game practice

Projector Compatibility

Projector is NOT included in the Studio package — this allows you to use your own projector or upgrade separately.

Optional Add-Ons:

• Projector (select from available options)
• Projector Accessory Bundle: Ceiling mount + 50' HDMI cable
• Lightning to HDMI adapter (if using iOS device)

Projector Recommendations for SIG12:

• Short-throw or ultra-short-throw projectors work best for the larger screen
• 1080P (1920×1200) resolution or higher strongly recommended
• 4,000+ lumens recommended for the larger screen size
• Consider 4K projectors for maximum image quality on this screen size

What's Included

• SIGPRO Premium Impact Screen — 11'5" × 8'7", MyGolfSpy "Best Hitting Screen" winner, double-stitched edges with grommets
• SIG12 Enclosure Frame — Powder-coated aluminum with color-coded push-pin assembly
• SIG Surround — Durable vinyl wrap for finished look (blocks ambient light, protects walls)
• 6" Ball Bungees — For mounting screen and surround
• Landing Pad Turf — Fills area between screen and hitting mat; protects floor from ball strikes
• Protective Foam Padding — Attaches to all sides of screen to protect frame and walls
• Side Barrier Netting — Catches errant shots
• Push-Pin Poles & Connectors — Color-coded for easy assembly
• Your Choice of Hitting Mat — Fairway 5'×5', SIGPRO 4'×7', SIGPRO 4'×10', or Simulator Flooring
• Assembly Manual & Video Access

What's NOT Included

• Launch monitor (SkyTrak, Garmin, GolfJoy, Uneekor, etc.)
• Projector
• Projector mount and cables (available as add-on)
• Computer/tablet for simulator software
• Simulator software (GSPro, E6, etc.)
• Putting green flags (flooring option includes cups but not flags)

Assembly

The SIG12 uses color-coded push-pin poles and connectors for straightforward DIY assembly:

1. Assemble frame using color-coded poles and push-pin connectors
2. Attach vinyl SIG Surround to frame
3. Mount SIGPRO impact screen using included ball bungees
4. Install protective foam padding on all sides
5. Attach side barrier netting
6. Position landing pad turf and hitting mat (or install simulator flooring)

Assembly Time: Approximately 2-3 hours with two people (larger than SIG8/SIG10)
Tools Required: Basic hand tools; ladder recommended due to 9'4" height
Resources: Assembly manual PDF and video walkthrough included

SIG8 vs. SIG10 vs. SIG12 Comparison

Choose SIG8 if space is your primary constraint and you can accept 80% image fill.

Choose SIG10 if you have a standard garage or basement with 9' ceilings and want full-screen image — the sweet spot for most home builds.

Choose SIG12 if you have a dedicated simulator room with 10'+ ceilings and want the largest screen, most overhead clearance, and maximum immersion.

Screen Options

The SIG12 Studio includes the SIGPRO Premium (White) Impact Screen as standard. For bright rooms with windows or overhead lighting, the SIGPRO Premier (Gray) Screen is available as an upgrade.

SIGPRO Premium (White) — Default

• Best for darker spaces with limited ambient light
• Brighter image in controlled lighting
• MyGolfSpy "Best Hitting Screen" winner

SIGPRO Premier (Gray) — Optional Upgrade

• Best for bright rooms with windows or overhead lighting
• Improved contrast and reduced washout in ambient light
• Same three-layer construction as Premium

Shipping & Returns

Shipping: Ships in 7–10 business days. Free shipping within the contiguous United States. Due to larger package size, ensure delivery access is available.

Returns: 30-day hassle-free return policy. Customer responsible for return shipping. 15% restocking fee applies. Products must be in like-new condition with all original packaging.

Frequently Asked Questions

Does the SIG12 Studio include a launch monitor?
No. The Studio package includes the enclosure, screen, landing pad, and hitting mat. You'll need to add your own launch monitor (SkyTrak, Garmin, GolfJoy, Uneekor, etc.) and projector.

Does the SIG12 Studio include a projector?
No. Projector is sold separately or available as an add-on. This gives you flexibility to use your own or upgrade independently.

What ceiling height do I need for the SIG12?
The enclosure is 9'4" tall, so you need at least 9'7" ceilings with 2-3" buffer. For comfortable full swings, 10'+ ceilings are strongly recommended. If you have standard 8' or 9' ceilings, consider the SIG10 instead.

How much bigger is the SIG12 screen than the SIG10?
The SIG12 screen is 11'5" × 8'7" (14'3" diagonal) vs. the SIG10's 10'1" × 7'7" (12'7" diagonal). That's about 1'4" wider and 1' taller — a significantly more immersive experience.

Can I use a 4'×10' double-sided mat with the SIG12?
Yes! The SIG12 easily accommodates the 4'×10' mat, allowing left and right-handed golfers to use the same setup with a center tee position.

How long does assembly take?
Approximately 2-3 hours with two people. The SIG12 takes slightly longer than the SIG8/SIG10 due to its larger size. A ladder is recommended given the 9'4" height.

What launch monitors are compatible?
Any launch monitor works — SkyTrak, Garmin R10/R50, GolfJoy, Mevo+, Foresight GC3, FlightScope, Rapsodo, overhead units like Uneekor, and more.

What simulator software can I use?
Any software compatible with your launch monitor — GSPro, E6 Connect, TGC 2019, Awesome Golf, GolfJoy 4K, and more.

What's the difference between the mat options?
Fairway 5'×5': Realistic feel, accepts real tees, ~1" thick.
SIGPRO 4'×7': Soft foam backing (easy on joints), larger footprint for floor-mounted monitors.
SIGPRO 4'×10': Double-sided with center tee for left/right-handed switching.
Simulator Flooring: Premium integrated hitting strip + putting green with four cups.

Should I leave space behind the screen?
Yes — leave some room between the screen and wall. Faster shots can cause the screen to flex and contact the wall behind it. A few inches of clearance is recommended.

Is the SIG12 good for commercial use?
The SIG12 is designed for residential use but can work in light commercial environments. For high-traffic commercial facilities, consider the SIGPRO Commercial Enclosure which is built for heavier use.

What makes the SIG12 worth the upgrade over the SIG10?
The SIG12 offers a significantly larger screen (14'3" diagonal vs. 12'7"), plus an extra foot of enclosure height (9'4" vs. 8'4") for more overhead swing clearance. If you have the ceiling height and room width, the SIG12 delivers the most immersive experience in the Signature Series.
