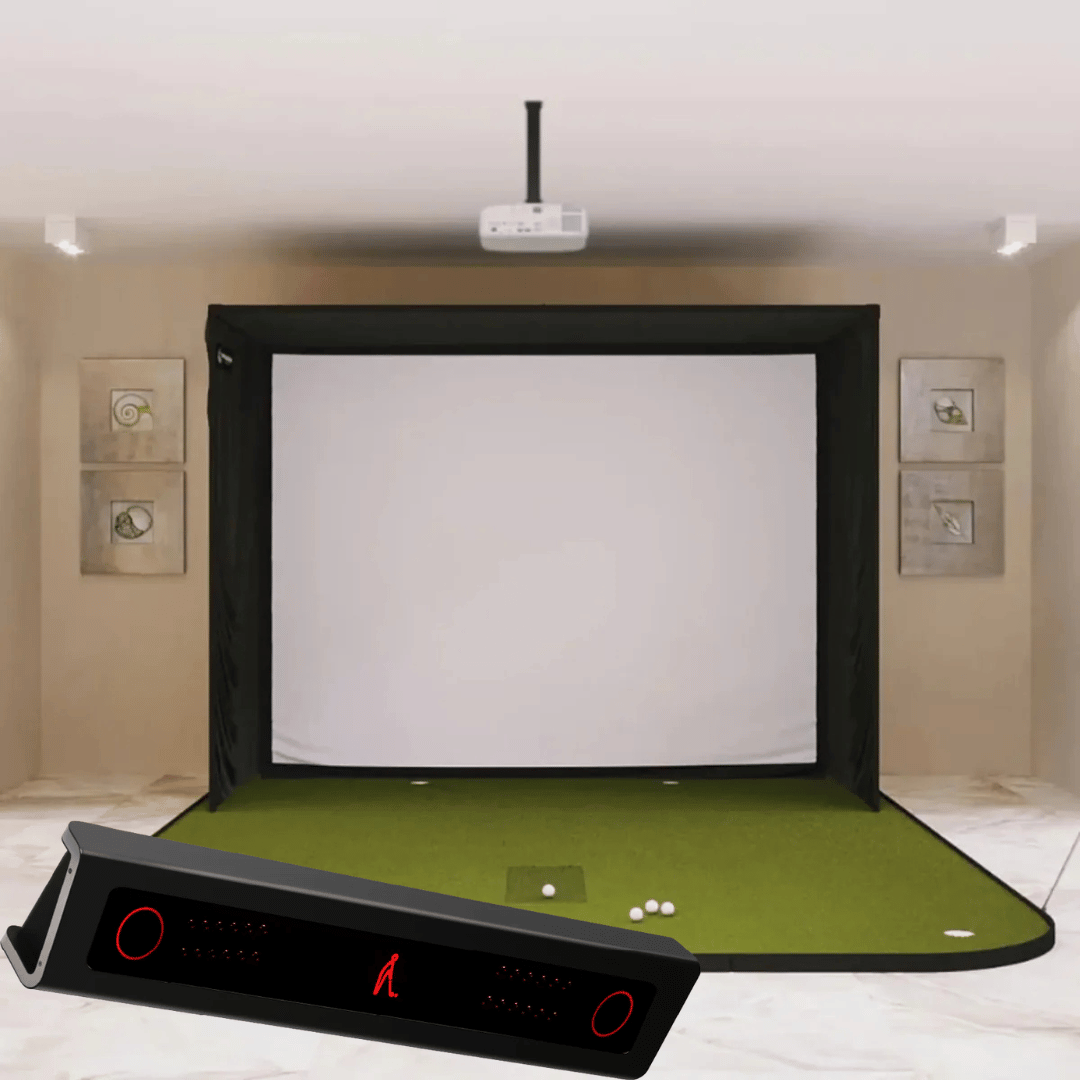

VTrack Golf Simulator - SIG10 Complete Package

Full-Screen Projection. Pro-Level Overhead Tracking. One Complete Package.

The VTrack Golf Simulator Bundle — SIG10 pairs the VTrack DX10 Overhead Launch Monitor with the SIG10 Golf Simulator Studio — a step up from the SIG8 in both screen real estate and image quality. Where the SIG8 gives you 80% image fill with a 1:1 screen, the SIG10's 4:3 aspect ratio fills 100% of the projected image — no letterboxing, no black bars, edge-to-edge gameplay.

The 10'10" wide enclosure fits comfortably in a standard garage or basement and opens up the full mat lineup — including the 4' × 10' double-sided mat for households where lefties and righties share the same setup. VTrack's overhead design keeps the entire hitting bay clear: no floor unit, no stickers, no marked balls. Just drop a standard ball and swing.

Select your hitting mat, add a projector if needed, and you have a complete, plug-and-play simulator. No subscription required to run the hardware.

Key Benefits

• ✔ 100% Image Fill — No Letterboxing
  The SIG10's 4:3 aspect ratio matches standard projector output for a full-screen image with no black bars above or below. Every inch of the 12'7" diagonal screen is active gameplay.
• ✔ Overhead Tracking — No Stickers, No Marked Balls
  VTrack's dual 1,800 FPS cameras capture full ball and club data with any standard golf ball. No reflective dots, no club-face stickers, no proprietary equipment required.
• ✔ Largest Hitting Zone in Its Class — 31" × 24"
  No repositioning for your stance. No worrying about a tiny sweet spot. Left- and right-handed players alternate shots without any adjustments to the launch monitor.
• ✔ Clean Hitting Area — Overhead Design, Nothing on the Floor
  VTrack mounts to the ceiling, leaving the entire hitting bay open. No floor unit to aim around, trip over, or accidentally clip with an off-center shot.
• ✔ 4' × 10' Double-Sided Mat Compatible
  The SIG10's 10'10" width accommodates the full 4' × 10' mat — the double-sided option with a center tee for true left/right alternation at the mat level as well.
• ✔ SIGPRO Premium Impact Screen — MyGolfSpy Independent Testing Winner
  Three-layer tight-knit polyester rated for 250 MPH ball strikes. Superior durability, quieter operation, and reduced bounce-back versus leading competitors.
• ✔ 24+ Data Points Including Slow-Motion Impact Video
  Full ball data, full club data, and slow-motion replay showing exactly where you struck the face — after every single shot.
• ✔ No Subscription Fees for the Hardware
  VTrack ToolKit and VTrack Practice Range ship with lifetime licenses. Native GSPro integration with no additional connector fee from VTrack.
• ✔ Ultra-Fast Feedback — 200–250ms
  Shot data appears on screen almost instantly after impact. Ball flight shows up with virtually zero perceptible delay — keeping rounds feeling natural.
• ✔ Color-Coded, DIY-Friendly Assembly
  The SIG10 frame uses push-pin poles and color-coded connectors. Most installations — enclosure and launch monitor combined — are complete in an afternoon.

Who Is This For?

• ✅ Golfers with a standard garage or basement who want full-screen projection and overhead accuracy
• ✅ Lefty/righty households who want both seamless monitor switching (VTrack) and double-sided mat capability (SIG10)
• ✅ Those upgrading from a net or SIG8 setup who want 100% image fill and a larger screen
• ✅ GSPro users who want native integration without connector fees
• ✅ Upgraders from floor-mounted launch monitors who want a clean, unobstructed hitting area
• ✅ DIYers who want plug-and-play installation without professional help
• ✅ Anyone building their first dedicated home simulator who wants everything in one purchase

What's in This Bundle

Hitting Mat Options

Select your hitting surface at checkout. Because VTrack is ceiling-mounted, any mat option works without clearance concerns for a floor unit. The SIG10's wider footprint unlocks the full mat lineup — including the 4' × 10' double-sided option not available with the SIG8.

Projector Options

A projector is not required to use VTrack — you can run the VTrack ToolKit on a standard monitor or TV. However, for the full simulator experience on the SIG10 screen, a short-throw projector is strongly recommended.

The SIG10 screen has a 4:3 aspect ratio, which produces 100% image fill with a standard projector — no letterboxing, no wasted screen area. Select your projector at checkout.

Projector Tip: VTrack's compact form factor (12.5" H × 6.5" W × 4.5" D) allows it to share ceiling space comfortably with a projector mount. Plan your ceiling layout before drilling — the launch monitor mounts 36–42" in front of the ball position, while your projector mount typically goes further back toward the golfer.

VTrack — What's Measured

Technical Specifications

VTrack DX10 Launch Monitor

SIG10 Golf Simulator Studio Enclosure

PC Requirements (for VTrack)

Software & Simulator Compatibility

Included with VTrack (Lifetime License — No Annual Fee):

• VTrack ToolKit — Ball flight analysis, club delivery data, impact location, CSV export
• VTrack Practice Range — Structured practice sessions and driving range mode

Third-Party Simulator Compatibility:

• GSPro — Native integration, no connector fee from VTrack
• E6 Connect
• E6 Apex
• TGC 2019

Third-party software requires its own separate license. VTrack does not charge additional fees to enable connectivity.

What's Included

• VTrack DX10 Launch Monitor
• Ceiling Mounting Bracket & Hardware
• USB 3.0 Cable
• Power Cable & Adapter
• VTrack ToolKit Software (Lifetime License)
• VTrack Practice Range Software (Lifetime License)
• SIG10 Enclosure Frame — Powder-coated steel with color-coded push-pin assembly
• SIGPRO Premium Impact Screen — 10'1" × 7'7", MyGolfSpy-tested, double-stitched with grommets
• SIG Surround — Vinyl wrap for finished appearance
• 6" Ball Bungees — Screen and surround mounting
• Landing Pad Turf — Floor protection between screen and mat
• Protective Foam Padding — All sides of frame
• Side Barrier Netting
• Push-Pin Poles & Connectors (color-coded)
• Choice of Hitting Mat (Fairway 5'×5', SIGPRO Softy 4'×7', SIGPRO Softy 4'×10', or Simulator Flooring)
• Optional Projector (if selected at checkout)
• Assembly Manual & Video Access

What's NOT Included

• Projector (unless selected at checkout)
• Projector mount and cables
• Computer / PC for running software
• Simulator software — GSPro ($250/yr), E6 Connect, etc. sold separately

Space & Installation Requirements

Ceiling Layout Tip: VTrack's compact form factor (12.5" H × 6.5" W × 4.5" D) allows it to share ceiling space comfortably with a projector mount. Plan your ceiling layout before drilling — the launch monitor goes 36–42" in front of the ball position, while the projector mount typically sits further back toward the golfer.

Assembly

VTrack Installation (Under 30 Minutes):

1. Mount the ceiling bracket 36–42" in front of ball position, 8.5–10' above hitting surface
2. Attach VTrack unit to bracket and connect USB 3.0 cable to PC
3. Install VTrack software and run the 2-step auto-calibration
4. Start hitting

SIG10 Enclosure Assembly (Approx. 1–2 Hours with Two People):

1. Assemble frame using color-coded poles and push-pin connectors
2. Attach vinyl SIG Surround to frame
3. Mount SIGPRO Premium screen using included ball bungees
4. Install protective foam padding on all sides
5. Attach side barrier netting
6. Position landing pad turf and hitting mat

Tools Required: Basic hand tools; step stool recommended. Assembly manual PDF and video walkthrough included for both components.

SIG8 vs. SIG10 vs. SIG12 — Which Enclosure Is Right for You?

Choose SIG8 if space is your primary constraint and you're comfortable with ~80% image fill. VTrack handles left/right switching natively, so the narrower enclosure still works for two-handed households.

Choose this SIG10 bundle if you have a standard garage or basement (11'+ wide), want 100% full-screen image fill, and prefer the 4:3 screen ratio for immersive gameplay. Also the right call if you want the 4'×10' double-sided mat.

Choose SIG12 if you have more space and ceiling height (10'+) and want the maximum screen size in the SIG lineup — 14'3" diagonal.

Shipping & Returns

Shipping: Ships in 7–10 business days. Free shipping within the contiguous United States.

Returns: 30-day hassle-free return policy. Customer responsible for return shipping costs. A 15% restocking fee applies.

Frequently Asked Questions

Does VTrack require club stickers or special balls?
No. VTrack uses markerless tracking — any standard golf ball, any clubs. No stickers, no reflective dots, no proprietary balls required.

What ceiling height do I need for this bundle?
A minimum of 9' ceiling height is required — the SIG10 is 8'4" tall and needs headroom for a comfortable swing, and VTrack's optimal mounting range is 8.5–10'. Both requirements are met at 9'+.

Does the SIG10 produce full-screen projection?
Yes. The SIG10's 4:3 aspect ratio fills 100% of the projected image from a standard projector — no letterboxing, no black bars. This is one of the key upgrades over the SIG8.

Does the bundle include a projector?
A projector is optional — select your preferred model at checkout, or choose "No Projector" if you already own one. VTrack captures and processes shot data independently of the projector.

Can left- and right-handed players both use this setup?
Yes — two ways. VTrack handles left/right switching natively with no adjustments to the unit. And the SIG10 also accommodates the 4'×10' double-sided mat for true alternating tee positions at the mat level. You can have both.

What simulator software can I use?
VTrack integrates natively with GSPro, E6 Connect, E6 Apex, and TGC 2019. VTrack does not charge a connector fee. Third-party software licenses are sold separately.

Can I mount VTrack and a projector on the same ceiling?
Yes. VTrack's compact dimensions (12.5" H × 6.5" W × 4.5" D) allow it to coexist with a ceiling-mounted projector. Plan your ceiling layout before installing so both units have appropriate clearance.

What's the difference between the SIG10 and SIG12?
The SIG12 is wider (12'2" vs 10'10") and taller (9'4" vs 8'4"), with a larger 14'3" diagonal screen. It requires a 10'+ ceiling versus 9'+ for the SIG10. Both have 4:3 screens with 100% image fill. Choose the SIG12 if you have the room height and want maximum screen size.

Is VTrack proven technology or is it new/untested?
VTrack is new to the US market (launched September 2025), but Laon Swingcraft has shipped over 20,000 units in South Korea across commercial facilities and home simulators. The underlying technology is mature and field-proven at scale.

How does VTrack accuracy compare to Uneekor?
Independent user testing shows VTrack accuracy on par with Uneekor EYE XO systems. The dual 1,800 FPS cameras deliver consistent, reliable ball and club data — at a significantly lower price point with no subscription required for hardware functionality.

What's the warranty on this bundle?
VTrack carries a 12-month warranty from Laon Swingcraft covering defects in materials and workmanship. The SIG10 Studio is covered under The Indoor Golf Shop's standard warranty. Contact Golf Sim Depot at (770) 766-5571 for warranty support on either component.

Do I need a PC? Can I use a Mac?
VTrack requires a Windows 10 or Windows 11 PC. Mac is not currently supported. If your current machine runs GSPro or E6 smoothly, it will run VTrack. Recommended specs: Intel i5/i7 10th gen+, 16 GB RAM, NVIDIA RTX 3070+, USB 3.0.

Can I upgrade to the SIGPRO Premier (Gray) screen?
Yes. For rooms with windows or significant ambient light, the SIGPRO Premier (Gray) screen offers improved contrast and reduced washout. Contact us to configure this option.
