The Biggest Screen in the SIG Lineup. Pro-Level Overhead Tracking. Built for Serious Spaces.

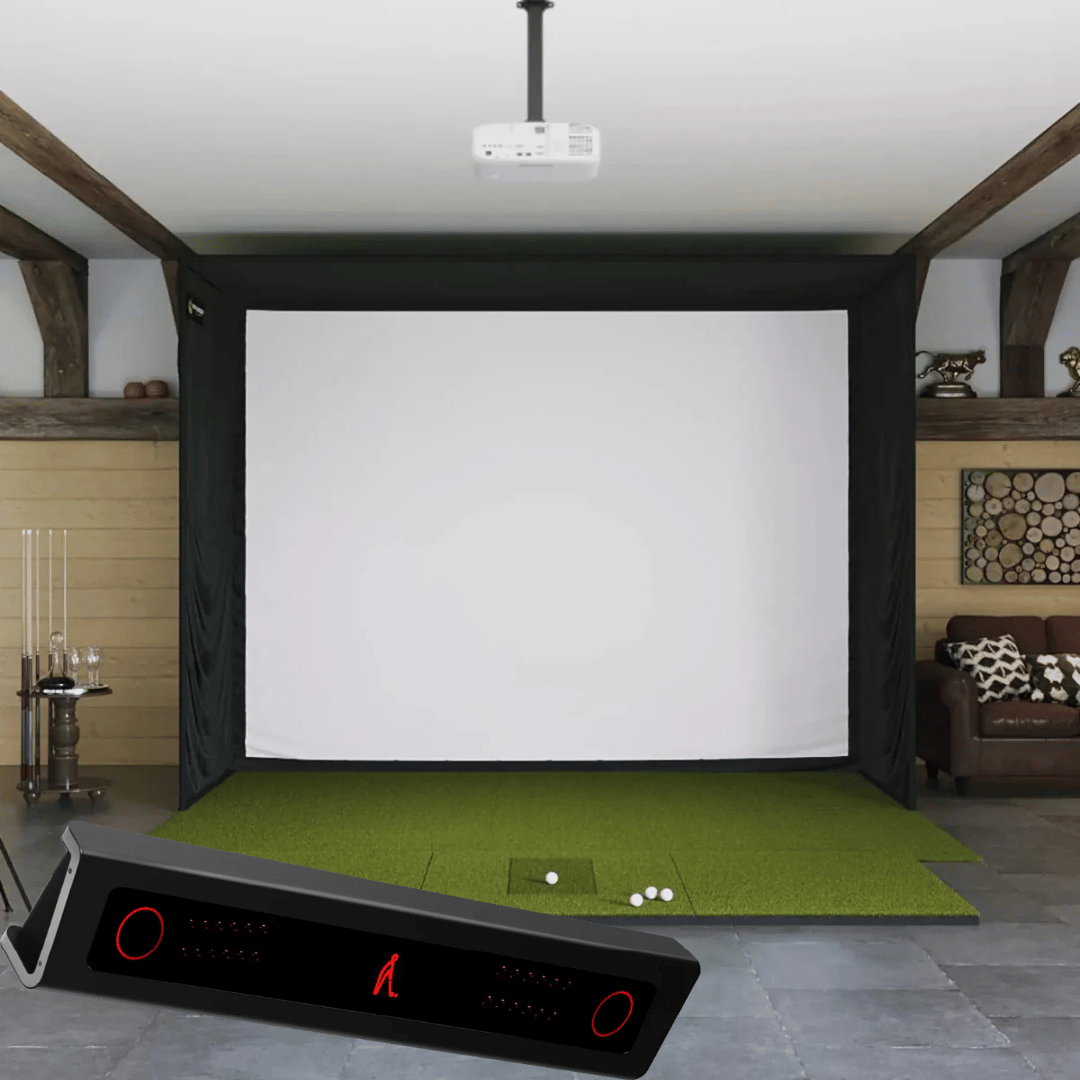

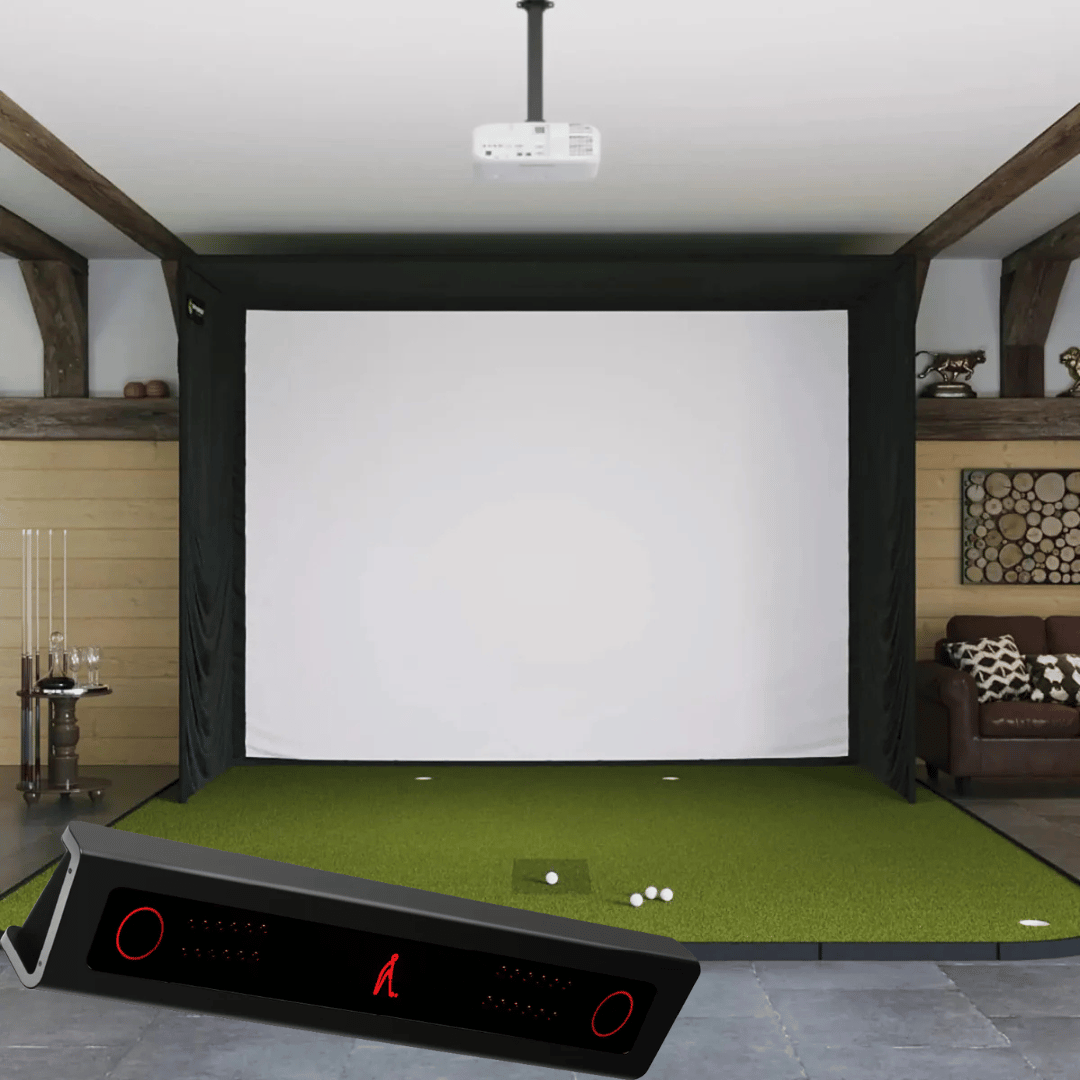

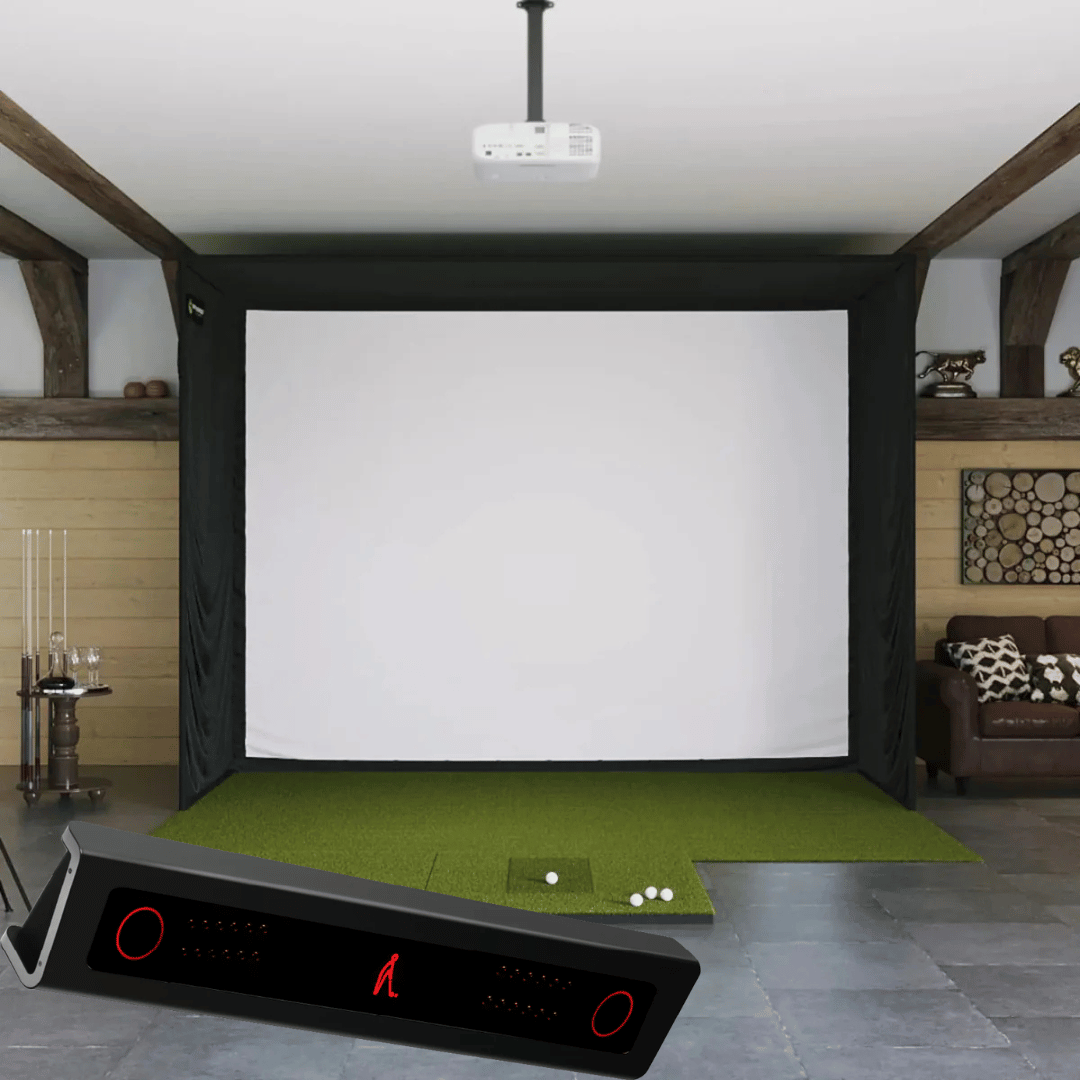

The VTrack Golf Simulator Bundle — SIG12 is the flagship configuration: the VTrack DX10 Overhead Launch Monitor paired with the SIG12 Golf Simulator Studio — the largest enclosure in The Indoor Golf Shop's Signature Series. At 14'3" diagonal, the SIG12 delivers the most immersive projection experience in the SIG lineup, with a 4:3 aspect ratio that fills 100% of the screen and a 9'4" tall frame that commands the room.
Like all VTrack bundles, the overhead design keeps the entire hitting area completely clear — no floor unit, no stickers on clubs, no marked balls. The 31" × 24" hitting zone (the largest in the overhead launch monitor category) means both left- and right-handed players can alternate shots without touching the unit. If you have the room for it, the SIG12 bundle is the definitive home simulator setup.
This bundle requires 10'+ ceiling height. If your space qualifies, select your hitting mat and projector at checkout — everything else is included.
Key Benefits
- ✔ Largest Screen in the SIG Series — 14'3" Diagonal
The SIG12's 11'5" × 8'7" screen delivers the most immersive golf simulator experience in the lineup. 100% image fill, 4:3 aspect ratio, edge-to-edge gameplay with no letterboxing. - ✔ Overhead Tracking — No Stickers, No Marked Balls
VTrack's dual 1,800 FPS cameras capture full ball and club data with any standard golf ball. No reflective dots, no club-face stickers, no proprietary equipment required. - ✔ Largest Hitting Zone in Its Class — 31" × 24"
No repositioning for your stance, no worrying about missing the detection area. Left- and right-handed players alternate shots without any adjustments to the launch monitor. - ✔ Clean Hitting Area — Nothing on the Floor
VTrack mounts to the ceiling, leaving the entire hitting bay open. No floor unit to aim around, trip over, or accidentally clip with an off-center shot. The SIG12's wider frame gives even more lateral breathing room. - ✔ 9'4" Tall Frame — Maximum Overhead Clearance
The SIG12 is the tallest enclosure in the SIG Series — giving taller golfers and high-swing players the most comfortable clearance of any SIG configuration. - ✔ 4' × 10' Double-Sided Mat Compatible
The SIG12's 12'2" width comfortably fits the 4'×10' double-sided mat — the center-tee option for households where lefties and righties share the same setup. - ✔ SIGPRO Premium Impact Screen — MyGolfSpy Independent Testing Winner
Three-layer tight-knit polyester rated for 250 MPH ball strikes. Superior durability, quieter operation, and reduced bounce-back versus leading competitors. - ✔ 24+ Data Points Including Slow-Motion Impact Video
Full ball data, full club data, and slow-motion replay showing exactly where you struck the face after every shot. - ✔ No Subscription Fees for the Hardware
VTrack ToolKit and VTrack Practice Range ship with lifetime licenses. Native GSPro integration with no additional connector fee from VTrack. - ✔ Ultra-Fast Feedback — 200–250ms
Shot data appears on screen almost instantly after impact. Ball flight shows up with virtually zero perceptible delay. - ✔ Color-Coded, DIY-Friendly Assembly
The SIG12 uses the same push-pin poles and color-coded connector system as the rest of the SIG Series — straightforward assembly without professional help.
Who Is This For?
- ✅ Golfers with a dedicated simulator room, large garage, or basement with 10'+ ceilings who want the maximum SIG experience
- ✅ Taller players or those with high backswings who need maximum overhead clearance
- ✅ Lefty/righty households who want both seamless VTrack switching and double-sided mat capability
- ✅ Those who want the most immersive projection experience possible in the SIG Series
- ✅ GSPro users who want native integration without connector fees
- ✅ Upgraders from a floor-mounted launch monitor who want a completely open hitting bay
- ✅ Anyone building a high-end home simulator and wants it done right the first time
What's in This Bundle
| Component | Details |
|---|---|
| VTrack DX10 Launch Monitor | Dual 1,800 FPS overhead cameras · 31" × 24" hitting zone · 24+ data points · Impact video replay · Ceiling mount + hardware + USB 3.0 cable included |
| VTrack Software (Lifetime License) | VTrack ToolKit + VTrack Practice Range — no annual fee |
| SIG12 Studio Enclosure | Powder-coated steel frame · Color-coded push-pin assembly · 12'2" × 9'4" × 5' |
| SIGPRO Premium Impact Screen | 11'5" × 8'7" (14'3" diagonal) · 4:3 aspect ratio · 100% image fill · MyGolfSpy-tested · 250 MPH rated · Double-stitched with grommets |
| SIG Surround | Vinyl wrap for a clean, finished look |
| Side Barrier Netting | Catches errant shots on both sides |
| Landing Pad Turf | Fills gap between screen and mat; protects floor |
| Foam Padding | Protective padding on all sides of screen |
| 6" Ball Bungees | For mounting screen and surround |
| Choice of Hitting Mat | Select from mat options at checkout (see below) |
| Optional Projector | Choose from HD or 4K options at checkout, or select "No Projector" to use your own |
| Assembly Manual + Video Access | Step-by-step guides for both components |
Hitting Mat Options
Select your hitting surface at checkout. Because VTrack is ceiling-mounted, any mat option works without clearance concerns for a floor unit. The SIG12's 12'2" width accommodates the full mat lineup including the 4' × 10' double-sided option.
| Mat Option | Size | Best For |
|---|---|---|
| Fairway Series | 5' × 5' | Realistic turf feel, accepts real tees. Great all-around choice. |
| SIGPRO Softy | 4' × 7' | Soft foam backing — easier on joints. Larger footprint for a comfortable stance. |
| SIGPRO Softy | 4' × 10' | Double-sided with center tee — one side for right-handed, one for left-handed play. The best mat-level option for two-handed households. Compatible with both the SIG10 and SIG12. |
| Simulator Flooring | Integrated | Premium DIY look with integrated hitting strip and putting green (4 cup positions). Best for golfers who want short game practice alongside full swing simulation. |
Projector Options
A projector is not required to use VTrack — you can run the VTrack ToolKit on a standard monitor or TV. However, to take full advantage of the SIG12's 14'3" diagonal screen, a short-throw projector is strongly recommended. At this screen size, the difference between 1080p and 4K is most visible — a 4K projector is worth serious consideration.
The SIG12 screen has a 4:3 aspect ratio, producing 100% image fill with a standard projector — no letterboxing, no wasted screen area. Select your projector at checkout.
| Model | Resolution | Type | Notes |
|---|---|---|---|
| TH671ST | 1080p Full HD | Short Throw | Entry-level HD option. Functional for the SIG12; 4K is noticeably better at this screen size. |
| AH30ST | 1080p Full HD | Short Throw | HD short throw with higher brightness. Good choice if staying with 1080p. |
| TK710STi | 4K UHD | Short Throw | 4K short throw — meaningful upgrade on a 14'3" screen. Sharper imagery, more detail in course visuals. |
| AH700ST | 4K UHD | Short Throw | 4K short throw with high lumen output. Solid performer in rooms with ambient light. |
| LK830ST | 4K UHD | 4K Short Throw | 4K with strong brightness — excellent for larger rooms or mixed-light environments. |
| AK700ST | 4K UHD | 4K Short Throw | High-lumen 4K short throw. A top recommendation for the SIG12 — matches the screen's scale. |
| LK936ST | 4K UHD | 4K Laser Short Throw | Top-tier laser projection. Best brightness, longest lamp life, best color accuracy. The premium choice for the SIG12's full-size screen. |
| No Projector | — | — | Use your own projector. Ensure it is short-throw compatible with your room depth. |
Projector Tip: VTrack's compact form factor (12.5" H × 6.5" W × 4.5" D) allows it to share ceiling space with a projector mount. Plan your ceiling layout before drilling — the launch monitor mounts 36–42" in front of the ball position, while the projector mount typically sits further back toward the golfer.
VTrack — What's Measured
| Category | Data Points |
|---|---|
| Ball Data (7 measured) | Ball Speed · Launch Angle · Launch Direction · Back Spin · Side Spin · Total Spin · Spin Axis |
| Club Data (9 measured) | Club Speed · Club Path · Face Angle · Face to Path · Attack Angle · Dynamic Loft · Smash Factor · Horizontal Impact Point · Vertical Impact Point |
| Calculated Flight Data (8) | Carry Distance · Total Distance · Run · Apex Height · Descent Angle · Shot Shape · Lateral Landing · Flight Time |
| Impact Video | Slow-motion impact replay showing ball position on club face after every shot |
Technical Specifications
VTrack DX10 Launch Monitor
| Spec | Detail |
|---|---|
| Tracking Technology | High-speed photometric (dual stereoscopic cameras) |
| Camera Speed | Up to 1,800 FPS per camera |
| Hitting Zone | 31" × 24" (800mm × 600mm) |
| Data Points | 24+ (ball, club, and flight) |
| Response Time | 200–250ms after impact |
| Ball Type | Any standard golf ball — markerless |
| Club Stickers | Not required |
| Handedness | Left and right — no adjustment needed |
| Mounting | Ceiling-mounted (overhead) · 36–42" in front of ball · 8.5–10' above hitting surface |
| Dimensions | Approx. 12.5" H × 6.5" W × 4.5" D |
| Weight | ~4.5 lbs (2 kg) |
| Connectivity | USB 3.0 |
| Warranty | 12 months |
| Manufacturer | Laon Swingcraft (Laon People Co., Ltd.) — South Korea |
SIG12 Golf Simulator Studio Enclosure
| Spec | Detail |
|---|---|
| Enclosure Width | 12'2" (146") |
| Enclosure Height | 9'4" (112") |
| Enclosure Depth | 5' (60") |
| Screen Width | 11'5" (137") |
| Screen Height | 8'7" (103") |
| Screen Diagonal | 14'3" (171") |
| Aspect Ratio | 4:3 |
| Image Fill | 100% — full-screen projection, no letterboxing |
| Screen Material | Three-layer tight-knit polyester (SIGPRO Premium) |
| Impact Rating | 250 MPH |
| Frame Material | Powder-coated steel |
| Assembly | Color-coded push-pin poles and connectors |
| 4' × 10' Mat Compatible | Yes |
PC Requirements (for VTrack)
| Component | Minimum / Recommended |
|---|---|
| Processor | Intel i5 or i7, 10th generation or newer |
| RAM | 8 GB minimum · 16 GB recommended |
| Graphics | NVIDIA GTX 1070 minimum · RTX 3070+ recommended |
| Storage | SSD with 200 GB+ available |
| OS | Windows 10 or Windows 11 |
| Connectivity | USB 3.0 port required |
| Display | 1080p minimum · 4K recommended |
| Internet | Required for software updates |
Software & Simulator Compatibility
Included with VTrack (Lifetime License — No Annual Fee):
- VTrack ToolKit — Ball flight analysis, club delivery data, impact location, CSV export
- VTrack Practice Range — Structured practice sessions and driving range mode
Third-Party Simulator Compatibility:
- GSPro — Native integration, no connector fee from VTrack
- E6 Connect
- E6 Apex
- TGC 2019
Third-party software requires its own separate license. VTrack does not charge additional fees to enable connectivity.
What's Included
- VTrack DX10 Launch Monitor
- Ceiling Mounting Bracket & Hardware
- USB 3.0 Cable
- Power Cable & Adapter
- VTrack ToolKit Software (Lifetime License)
- VTrack Practice Range Software (Lifetime License)
- SIG12 Enclosure Frame — Powder-coated steel with color-coded push-pin assembly
- SIGPRO Premium Impact Screen — 11'5" × 8'7", MyGolfSpy-tested, double-stitched with grommets
- SIG Surround — Vinyl wrap for finished appearance
- 6" Ball Bungees — Screen and surround mounting
- Landing Pad Turf — Floor protection between screen and mat
- Protective Foam Padding — All sides of frame
- Side Barrier Netting
- Push-Pin Poles & Connectors (color-coded)
- Choice of Hitting Mat (Fairway 5'×5', SIGPRO Softy 4'×7', SIGPRO Softy 4'×10', or Simulator Flooring)
- Optional Projector (if selected at checkout)
- Assembly Manual & Video Access
What's NOT Included
- Projector (unless selected at checkout)
- Projector mount and cables
- Computer / PC for running software
- Simulator software — GSPro ($250/yr), E6 Connect, etc. sold separately
Space & Installation Requirements
| Requirement | Detail |
|---|---|
| Minimum Room Width | 13' (enclosure is 12'2" wide) |
| Minimum Ceiling Height | 10' — the SIG12 is 9'4" tall and requires 10'+ for swing clearance; VTrack mounts optimally at 8.5–10' above the hitting surface |
| Recommended Ceiling Height | 10'–11' for maximum comfort and ideal VTrack camera positioning |
| Room Depth Required | 5' for enclosure + hitting mat + swing clearance (typically 13–16' total room depth recommended) |
| VTrack Mounting Position | 36–42" in front of the ball, 8.5–10' above the hitting surface |
| Clearance Behind Screen | Leave at least 6–12" behind the impact screen for ball flex — do not mount flush to a wall |
| VTrack Installation Time | Under 30 minutes · DIY-friendly · 2-step auto-calibration |
| SIG12 Assembly Time | Approximately 1–2 hours with two people |
| Electrical | Standard outlet for projector (if applicable) and PC · VTrack powers via USB from PC |
Important — Ceiling Height Note: The SIG12 requires a minimum 10' ceiling, which also places VTrack at the upper end of its optimal mounting range (8.5–10'). In most 10' ceiling rooms, VTrack installs without issue. If your ceiling is exactly 10', confirm your finished floor-to-ceiling measurement before ordering. For ceilings of 10'6" or higher, there is no concern.
Ceiling Layout Tip: VTrack's compact form factor (12.5" H × 6.5" W × 4.5" D) allows it to share ceiling space with a projector mount. Plan your layout before drilling — the launch monitor mounts 36–42" in front of the ball position, while the projector mount typically sits further back toward the golfer.
Assembly
VTrack Installation (Under 30 Minutes):
- Mount the ceiling bracket 36–42" in front of ball position, 8.5–10' above hitting surface
- Attach VTrack unit to bracket and connect USB 3.0 cable to PC
- Install VTrack software and run the 2-step auto-calibration
- Start hitting
SIG12 Enclosure Assembly (Approx. 1–2 Hours with Two People):
- Assemble frame using color-coded poles and push-pin connectors
- Attach vinyl SIG Surround to frame
- Mount SIGPRO Premium screen using included ball bungees
- Install protective foam padding on all sides
- Attach side barrier netting
- Position landing pad turf and hitting mat
Tools Required: Basic hand tools; step stool recommended. Assembly manual PDF and video walkthrough included for both components.
SIG8 vs. SIG10 vs. SIG12 — Which Enclosure Is Right for You?
| Specification | SIG8 | SIG10 | SIG12 |
|---|---|---|---|
| Enclosure Width | 8'4" | 10'10" | 12'2" |
| Enclosure Height | 8'4" | 8'4" | 9'4" |
| Screen Diagonal | 10'8" | 12'7" | 14'3" |
| Aspect Ratio | 1:1 | 4:3 | 4:3 |
| Image Fill | ~80% | 100% | 100% |
| Min Ceiling Height | 9' | 9' | 10' |
| 4'×10' Mat Compatible | No | Yes | Yes |
Choose SIG8 if space is your primary constraint. 9' ceiling minimum, fits rooms as narrow as 9' wide. VTrack handles left/right switching natively regardless of enclosure size.
Choose SIG10 if you have a standard garage or basement (11'+ wide, 9'+ ceiling) and want 100% image fill and full 4:3 projection — the best value step-up from the SIG8.
Choose this SIG12 bundle if you have 13'+ room width and 10'+ ceilings and want the largest, most immersive simulator experience the SIG Series offers. The tallest frame, the biggest screen, and the most overhead clearance — the flagship configuration.
Shipping & Returns
Shipping: Ships in 7–10 business days. Free shipping within the contiguous United States.
Returns: 30-day hassle-free return policy. Customer responsible for return shipping costs. A 15% restocking fee applies.
Frequently Asked Questions
Does VTrack require club stickers or special balls?
No. VTrack uses markerless tracking — any standard golf ball, any clubs. No stickers,
no reflective dots, no proprietary balls required.
What ceiling height does the SIG12 require?
A minimum of 10' ceiling height is required. The SIG12 frame is 9'4" tall
and needs clearance for a full swing. VTrack mounts optimally at 8.5–10' above the hitting
surface, so a 10' ceiling works — just confirm your finished floor-to-ceiling measurement
before ordering. Ceilings of 10'6" or higher are ideal.
Is VTrack compatible with a 10' ceiling?
Yes. VTrack's mounting range is 8.5–10' above the hitting surface. A 10' ceiling places the
unit right at the upper end of that range, which works in most configurations. If your
ceiling is exactly 10', we recommend confirming with us before ordering — call or text
(770) 766-5571 and we can verify compatibility for your specific setup.
Does the SIG12 produce full-screen projection?
Yes. The SIG12's 4:3 aspect ratio fills 100% of the projected image — no letterboxing,
no black bars. The 14'3" diagonal screen is the largest in the SIG Series.
Is a 4K projector worth it for the SIG12?
Yes — more so than with the SIG8 or SIG10. At 14'3" diagonal, the increased pixel density of
4K is visible and meaningful. The AK700ST or LK936ST are both strong matches for this screen size.
Does the bundle include a projector?
A projector is optional — select your preferred model at checkout, or choose "No Projector"
if you already own one. VTrack captures and processes all shot data independently of the projector.
Can left- and right-handed players both use this setup?
Yes — two ways. VTrack handles left/right switching natively with no adjustments to the unit.
The SIG12 also fits the 4'×10' double-sided mat for true alternating tee positions at mat level.
What simulator software can I use?
VTrack integrates natively with GSPro, E6 Connect,
E6 Apex, and TGC 2019. No connector fee from VTrack.
Third-party software licenses are sold separately.
What's the warranty on this bundle?
VTrack carries a 12-month warranty from Laon Swingcraft. The SIG12 Studio is
covered under The Indoor Golf Shop's standard warranty. Contact Golf Sim Depot at (770) 766-5571
for warranty support on either component.
Is VTrack proven technology or new/untested?
VTrack is new to the US market (launched September 2025), but Laon Swingcraft has shipped over
20,000 units in South Korea across commercial and home simulator installations. The technology
is mature and field-proven at scale.
Do I need a PC? Can I use a Mac?
VTrack requires a Windows 10 or Windows 11 PC. Mac is not currently supported.
If your current machine runs GSPro or E6 smoothly, it will run VTrack. Recommended specs:
Intel i5/i7 10th gen+, 16 GB RAM, NVIDIA RTX 3070+, USB 3.0.
Can I upgrade to the SIGPRO Premier (Gray) screen?
Yes. For rooms with windows or significant ambient light, the SIGPRO Premier (Gray) screen
offers improved contrast and reduced washout. Contact us to configure this option.
Choose options
Common questions
Let customers speak for us
I’ve tested multiple overhead launch monitors looking for the best mix of accuracy, reliability, and price. Nothing has come close to the ProTee. It simply works every time. The tracking is fast, consistent, and doesn’t require constant tweaking or recalibration like others I’ve owned. The software is a standout too: intuitive, polished, and far more advanced than I expected at this price point.
For anyone building a home simulator and wanting overhead performance without spending 20k, this is the new standard. ProTee absolutely nailed it.
Have had the ProTeeVX set up for a little over a week and it's been amazing so far. Wasn't totally clear on the dimension requirements and Golf Sim Depot was super helpful through their chat feature and answered all my questions. Bundling this, the protective cover, GSPro AND getting two free swing cams is an incredible deal for a top quality product.
The best company to work with Kyle is very responsive and very easy to work with!!
I had questions about the Protee VX so I called Golf Sim Depot. Kyle answered the phone right away and answered all my questions. I am working on revamping my simulator so he also spent some time talking to me about it and some of the choices I have for the revamp. I bought the Protee VX from Golf Sim Depot and couldn't be happier.
Great company with quick delivery, prompt answers to my questions! Will highly recommend them!
I've been a business owner since I was 12 years old; customer service is the blood that flows for the success of any business. Kyle and his team at Golf Sim Depot have met those standards, from choosing the right sim for my space to following through when an issue arose with my screen. Thank you, Kyle; you have a customer for life.
ProTee vx is the new king of indoor launch monitors. If you want to know every detail of your golf swing then this is the one to purchase..
Couldn't be happier with the ProTee vx.
It is my second Softy. It is worth my health. I am 65. I have hit my share of fat shots. No one had any issue with smacking the club. The last straw was my friend hitting the raised back edge. The first is a little warn in the center - still usable but needs repair gluing the corners and edges after forcing it into a cut out in my mat. This new one fits like a well fitted golf glove. I could not be happier with the product. Regarding Golf Sim Depot: I have had several great experiences with Kylie upgrading from Skytrak to Uneekor EML and then Uneekor's Optix package. This Softy was derived quickly like all the other purchases.
Kyle knows sims. He worked with me and gave me insights that really helped me move my business in the right direction. My launch monitors arrived in less than a week, would highly recommend doing business with Golf Sim Depot.
Needed garmin r50 by certain date. Kyle made it happen even with holiday weekend. Would recommend to anyone looking to purchase.
I received my unit very quickly. Golf sim depot was very flexible and easy to deal with.
They will be the first place I go for any additional needs.
Respond well and fast to questions.
Great customer service. Worked with us very well.
Outstanding customer service and communication. Bought most of my setup here and they got everything to me on time or ahead of schedule.
These guys are great! Called on a Saturday and he went straight to UPS so I had the product on Monday. Very good pricing too. Highly recommend!
