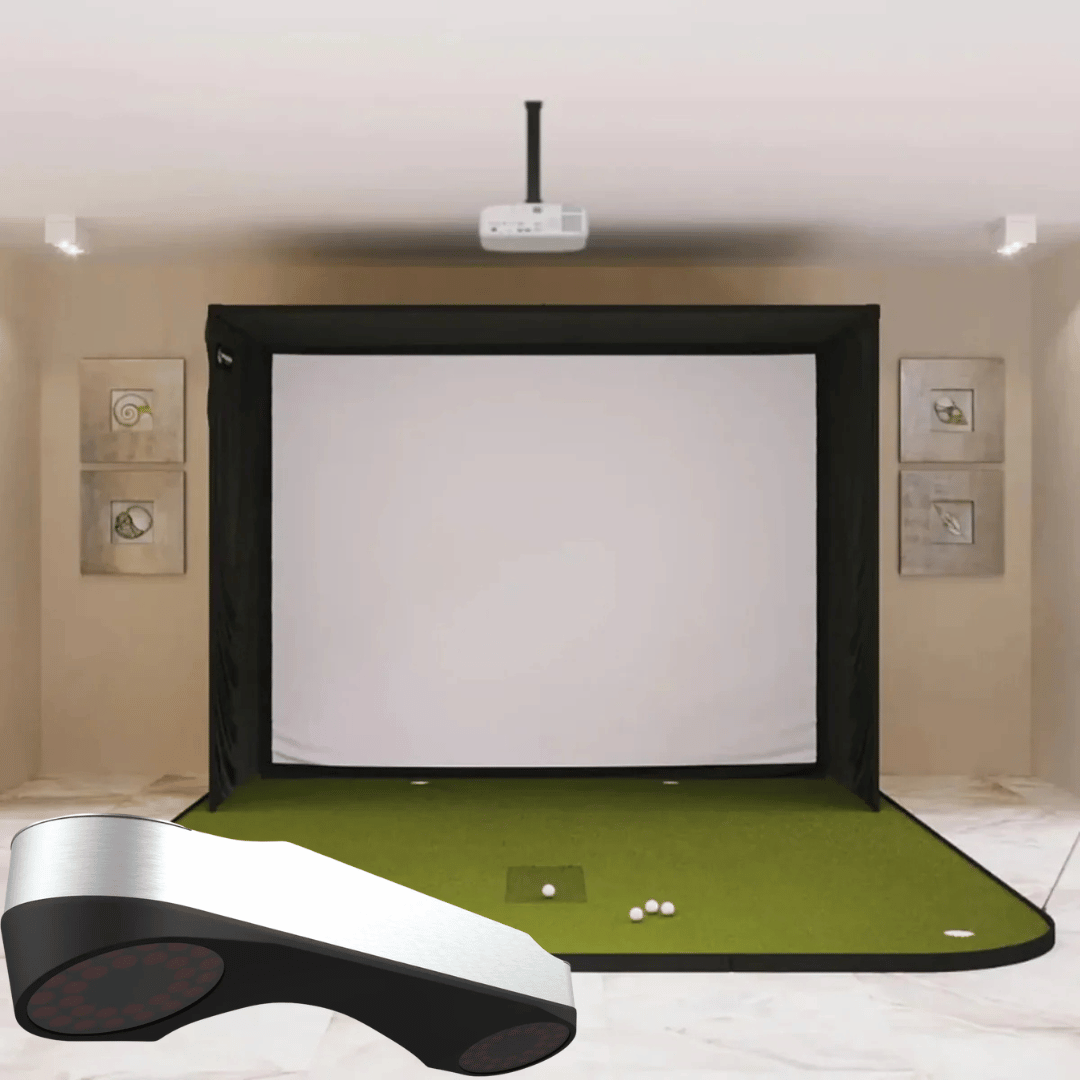

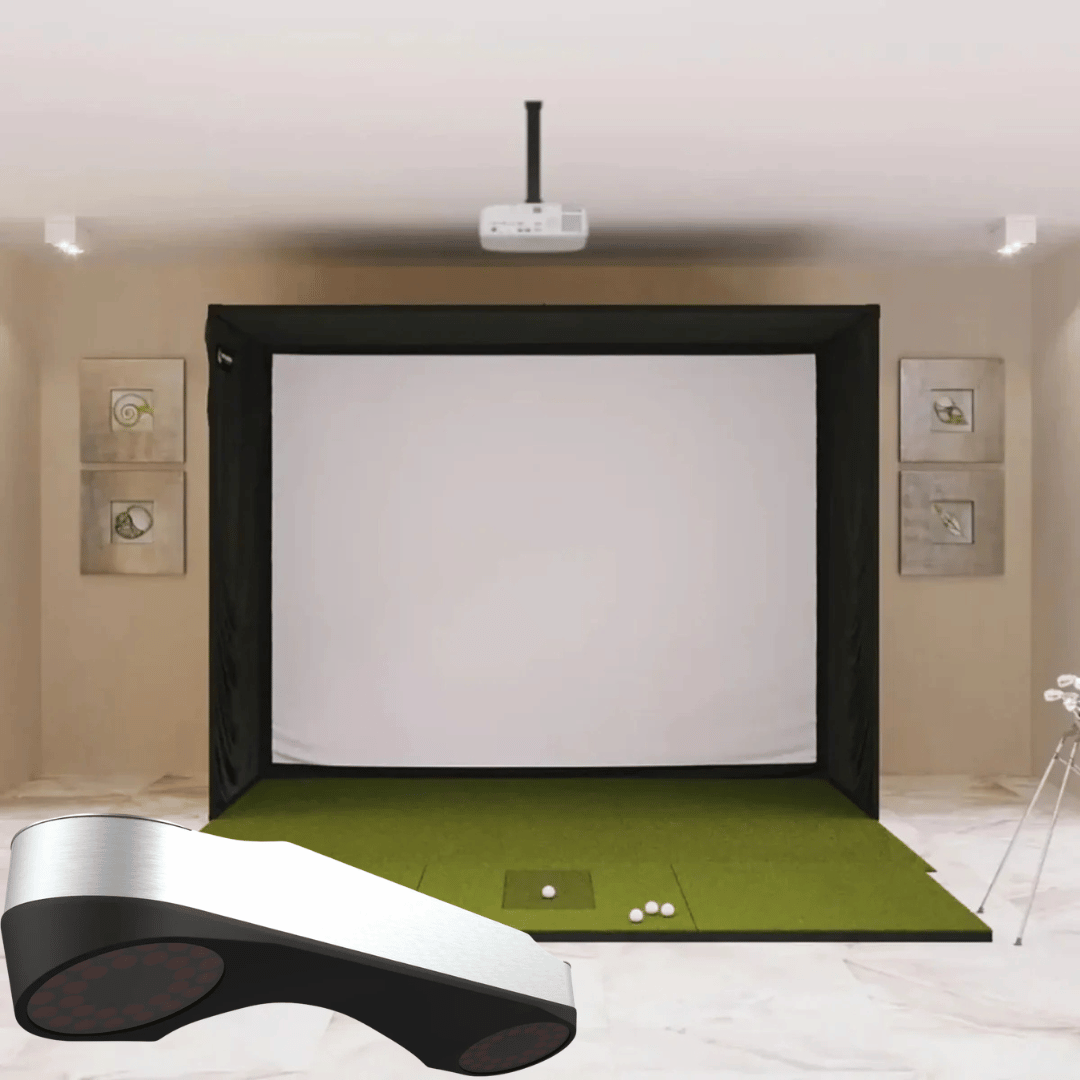

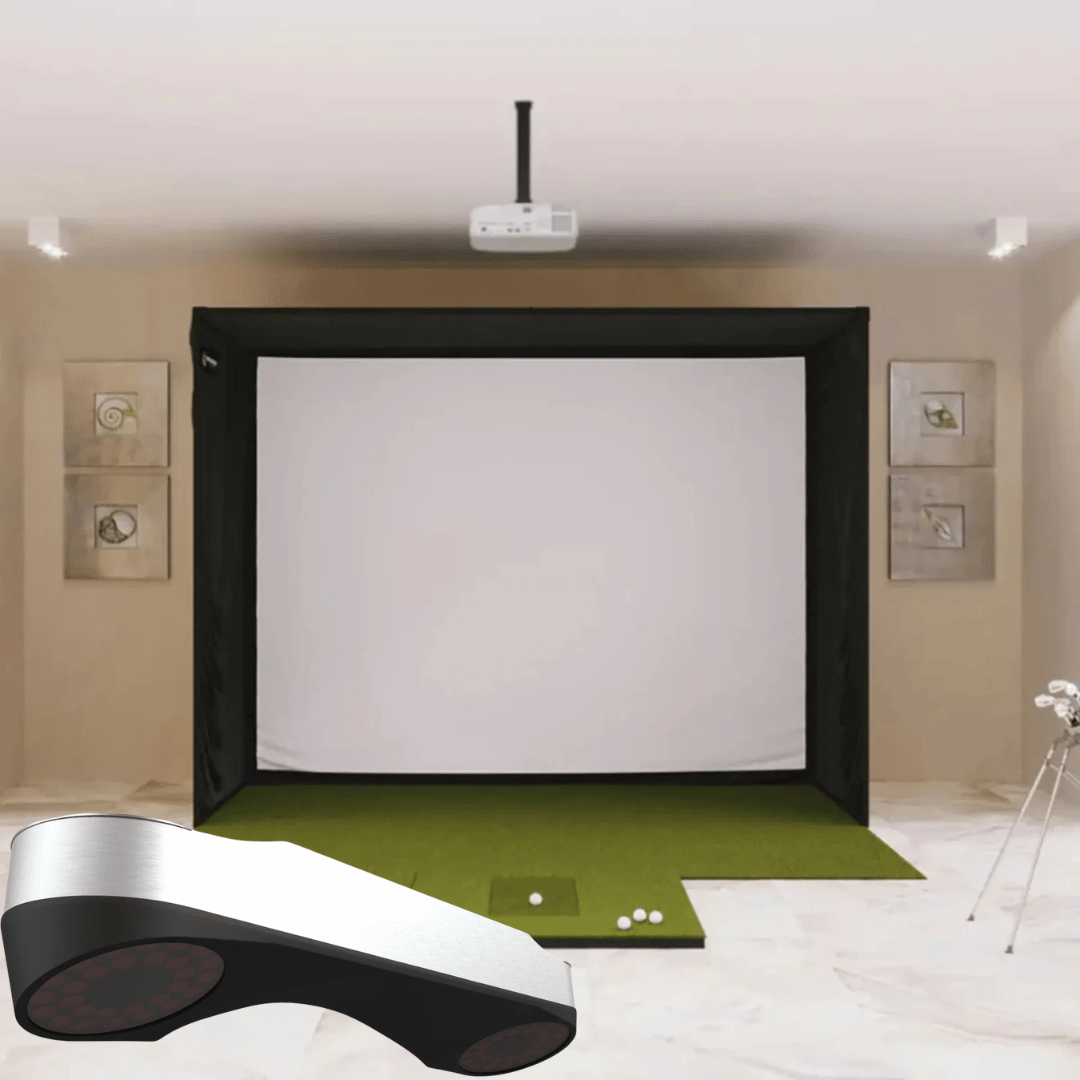

ProTee VX Golf Simulator - SIG10 Complete Package

Full-Screen Projection. A.I. Overhead Accuracy. Swing Cameras Included.

The ProTee VX Golf Simulator Bundle — SIG10 steps up from the SIG8 in screen size, image quality, and mat options. The SIG10 Golf Simulator Studio brings a 4:3 aspect ratio screen that fills 100% of the projected image — no letterboxing, no black bars — and a 12'7" diagonal that fills the room the way a proper golf simulator should. Pair it with the ProTee VX Overhead Launch Monitor and you have A.I.-powered dual-camera tracking with accuracy within 1–2% of systems like the GCQuad and Trackman 4.

The overhead design keeps the entire hitting bay clear — no floor unit, no stickers, no marked balls. The SIG10's wider 10'10" frame also unlocks the full mat lineup, including the 4' × 10' double-sided mat for households where lefties and righties share the same setup. And right now, every ProTee VX order ships with 2 free swing cameras (a $700 value) — automatically added to your shipment.

Select your mat, add a projector if needed, and you have a complete, ready-to-play simulator in one purchase.

Key Benefits

• ✔ 100% Image Fill — No Letterboxing
  The SIG10's 4:3 aspect ratio matches standard projector output for a full-screen image with no black bars above or below. Every inch of the 12'7" diagonal screen is active gameplay — a meaningful step up from the SIG8's 1:1 screen.
• ✔ A.I.-Powered Dual-Camera Tracking — No Stickers, No Marked Balls
  The ProTee VX captures full ball and club data with any standard golf ball using onboard A.I. and dual high-speed cameras. No reflective dots, no club-face stickers, no proprietary equipment required.
• ✔ Accuracy Within 1–2% of GCQuad and Trackman 4
  Professional-grade data at a home simulator price — ball speed, spin rates, launch angle, club path, face angle, impact points, and more.
• ✔ 2 Free Swing Cameras Included — $700 Value
  Every ProTee VX order currently ships with two swing cameras at no extra cost. Automatically added to your shipment — no code needed. Capture your swing from multiple angles alongside your shot data.
• ✔ Perpetual ProTee Labs Software License — No Annual Fee
  ProTee Labs ships with a lifetime license — real-time data, customizable displays, bag mapping, and A.I. improvements delivered via automatic updates. No subscription required to use the hardware.
• ✔ Native GSPro Integration — No Connector Fee
  The ProTee VX connects to GSPro natively, saving approximately $250 per year versus systems that require a third-party connector.
• ✔ Ceiling-Mounted — Completely Open Hitting Area
  No floor unit to aim around, trip over, or accidentally clip. The overhead design works perfectly alongside any hitting mat option in the SIG10 lineup.
• ✔ 4' × 10' Double-Sided Mat Compatible
  The SIG10's 10'10" width accommodates the full 4'×10' mat — the double-sided option with a center tee for true left/right alternation at the mat level.
• ✔ Left- and Right-Handed Support Without Recalibration
  The ProTee VX automatically supports both handednesses — no repositioning, no recalibration when switching players.
• ✔ SIGPRO Premium Impact Screen — MyGolfSpy Independent Testing Winner
  Three-layer tight-knit polyester rated for 250 MPH ball strikes. Superior durability, quieter operation, and reduced bounce-back versus leading competitors.
• ✔ Instant Feedback — Under 1 Second
  Shot data appears on screen in under a second after impact. Ball flight responds with virtually no perceptible delay.
• ✔ Color-Coded, DIY-Friendly Assembly
  The SIG10 uses the same push-pin poles and color-coded connector system as the rest of the SIG Series — straightforward setup without professional help.

Who Is This For?

• ✅ Golfers with a standard garage or basement who want full-screen projection and professional overhead accuracy in one package
• ✅ Lefty/righty households who want both seamless monitor switching (ProTee VX) and double-sided mat capability (SIG10)
• ✅ Those upgrading from a net, SIG8, or floor-mounted setup who want 100% image fill and a larger screen
• ✅ GSPro users who want native integration without a connector fee
• ✅ Players who want swing video alongside shot data — the included cameras add an analysis layer most bundles don't offer
• ✅ Serious amateurs who want GCQuad-level accuracy without the GCQuad price
• ✅ Anyone building a complete home simulator who wants everything in one purchase

What's in This Bundle

Hitting Mat Options

Select your hitting surface at checkout. Because the ProTee VX is ceiling-mounted, any mat option works without clearance concerns for a floor unit. The SIG10's wider footprint unlocks the full mat lineup — including the 4' × 10' double-sided option not available with the SIG8.

Projector Options

A projector is not required to use the ProTee VX — you can run ProTee Labs on a standard monitor or TV. For the full simulator experience on the SIG10's 12'7" diagonal screen, a short-throw projector is strongly recommended.

The SIG10 screen has a 4:3 aspect ratio, producing 100% image fill with a standard projector — no letterboxing, no wasted screen area. Select your projector at checkout.

Ceiling Layout Tip: The ProTee VX unit measures 83cm × 20cm × 17cm and mounts via a dedicated plate. Plan your ceiling layout before drilling so both the ProTee VX and your projector mount have adequate clearance side by side.

ProTee VX — What's Measured

Technical Specifications

ProTee VX Launch Monitor

SIG10 Golf Simulator Studio Enclosure

PC Requirements (for ProTee VX)

Software & Simulator Compatibility

Included with ProTee VX (Perpetual License — No Annual Fee):

• ProTee Labs — Full-featured virtual golf and shot analysis software with real-time data display, bag mapping, customizable layouts, and A.I.-powered tracking improvements via automatic updates

Third-Party Simulator Compatibility:

• GSPro — Native integration, no connector fee
• TGC 2019
• E6 Connect

Third-party software requires its own separate license. The ProTee VX does not charge additional fees to connect to GSPro — saving approximately $250/year versus systems that require a third-party connector.

What's Included

• ProTee VX Launch Monitor
• ProTee Labs Software (Perpetual License)
• 2 Free Swing Cameras ($700 value — current promotion, automatically included)
• Calibration Board
• USB to Ethernet Adapter
• 10m UTP Cat6 Network Cable
• US Power Cord
• Mounting Plate and Screws
• SIG10 Enclosure Frame — Powder-coated steel with color-coded push-pin assembly
• SIGPRO Premium Impact Screen — 10'1" × 7'7", MyGolfSpy-tested, double-stitched with grommets
• SIG Surround — Vinyl wrap for finished appearance
• 6" Ball Bungees — Screen and surround mounting
• Landing Pad Turf — Floor protection between screen and mat
• Protective Foam Padding — All sides of frame
• Side Barrier Netting
• Push-Pin Poles & Connectors (color-coded)
• Choice of Hitting Mat (Fairway 5'×5', SIGPRO Softy 4'×7', SIGPRO Softy 4'×10', or Simulator Flooring)
• Optional Projector (if selected at checkout)
• Assembly Manual & Video Access

What's NOT Included

• Projector (unless selected at checkout)
• Projector mount and cables
• Computer / PC for running software
• Simulator software — GSPro ($250/yr), E6 Connect, etc. sold separately

Space & Installation Requirements

Assembly

ProTee VX Installation:

1. Mount the ceiling plate at the appropriate position above and in front of the hitting area
2. Attach the ProTee VX unit to the mounting plate
3. Run the Cat6 cable from the unit to your PC (USB to Ethernet adapter included)
4. Connect power cord to a standard outlet
5. Install ProTee Labs software and run the calibration process using the included calibration board
6. Mount swing cameras at desired positions
7. Start hitting

SIG10 Enclosure Assembly (Approx. 1–2 Hours with Two People):

1. Assemble frame using color-coded poles and push-pin connectors
2. Attach vinyl SIG Surround to frame
3. Mount SIGPRO Premium screen using included ball bungees
4. Install protective foam padding on all sides
5. Attach side barrier netting
6. Position landing pad turf and hitting mat

Tools Required: Basic hand tools; step stool recommended. Assembly manual PDF and video walkthrough included for both components.

SIG8 vs. SIG10 vs. SIG12 — Which Enclosure Is Right for You?

Choose SIG8 if space is your primary constraint — fits rooms as narrow as 9' wide. The ProTee VX handles left/right switching automatically, so the narrower enclosure is not a limitation for two-handed households.

Choose this SIG10 bundle if you have a standard garage or basement (11'+ wide, 9'+ ceiling), want 100% full-screen image fill, and prefer the option of a 4'×10' double-sided mat for alternating tee positions.

Choose SIG12 if you have 13'+ room width and 10'+ ceilings and want the largest screen and tallest frame in the SIG Series — 14'3" diagonal, 9'4" tall frame.

Shipping, Returns & Refund Policy

Shipping: The SIG10 Studio ships in 7–10 business days. Free shipping within the contiguous United States. The ProTee VX is currently on a 4+ week backorder — your order is fulfilled in the order received. We will keep you updated on your order status.

SIG10 Studio Returns: 30-day hassle-free return policy. Customer responsible for return shipping costs. A 15% restocking fee applies.

⚠ ProTee VX — All Sales Final: The ProTee VX Launch Monitor is not eligible for return or refund except in cases of transit damage or lost shipment. Please review all room size requirements, computer requirements, and product specifications carefully before purchasing. If you have questions, contact us at (770) 766-5571 before placing your order — we're happy to help confirm compatibility for your specific setup.

Frequently Asked Questions

Does the ProTee VX require club stickers or special balls?
No. The ProTee VX uses A.I.-powered markerless tracking with any standard golf ball. No stickers, no marked balls, no proprietary equipment needed. For best spin tracking results, balls with bold logos or alignment lines (such as Titleist Pro V1 or TaylorMade Pix) are recommended.

What ceiling height do I need?
The SIG10 enclosure is 8'4" tall and requires at minimum 9' ceiling height for comfortable full swings. The ProTee VX mounting position should be confirmed against the included mounting diagram for your specific room. Contact us at (770) 766-5571 before ordering if you have any uncertainty about ceiling compatibility.

Is the ProTee VX eligible for return?
No — the ProTee VX is all sales final. Returns are only accepted for units damaged in transit or lost by the carrier. Please review all specifications and requirements carefully before purchasing. The SIG10 Studio portion of this bundle is covered by the standard 30-day return policy.

How long is the backorder wait for the ProTee VX?
The ProTee VX is currently on a 4+ week backorder. Orders are fulfilled in the order received. Golf Sim Depot will keep you updated throughout the process.

Are the 2 free swing cameras always included?
The swing cameras are part of a current promotion and are automatically added to your shipment at no extra cost — no code needed. Contact us to confirm this promotion is still active at the time of your order.

Does the SIG10 produce full-screen projection?
Yes. The SIG10's 4:3 aspect ratio fills 100% of the projected image from a standard projector — no letterboxing, no black bars. This is one of the key upgrades over the SIG8.

Can left- and right-handed players both use this setup?
Yes — two ways. The ProTee VX handles left/right switching automatically with no recalibration. And the SIG10 also accommodates the 4'×10' double-sided mat for true alternating tee positions at the mat level. You can have both.

Does the bundle include a projector?
A projector is optional — select your preferred model at checkout, or choose "No Projector" if you already own one. The ProTee VX captures and processes all shot data independently of the projector.

What simulator software can I use?
The ProTee VX integrates natively with GSPro (no connector fee), TGC 2019, and E6 Connect. ProTee Labs — included with a perpetual license — also offers its own full virtual golf and driving range experience. Third-party software licenses are sold separately.

How accurate is the ProTee VX?
The ProTee VX delivers data within 1–2% of industry benchmarks like the GCQuad and Trackman 4. Ball speed, spin, launch angle, club path, and face angle are all captured at professional-grade accuracy.

What's the warranty on the ProTee VX?
The ProTee VX carries a 1-year limited warranty from ProTee United B.V. covering defects in materials and workmanship under normal use. The SIG10 Studio is covered under The Indoor Golf Shop's standard warranty. Contact Golf Sim Depot at (770) 766-5571 for warranty support on either component.

Can I use a Mac?
No. The ProTee VX requires Windows 10 or Windows 11. macOS, Linux, iOS, and Android are not supported. NVIDIA Quadro graphics cards are also not supported.
