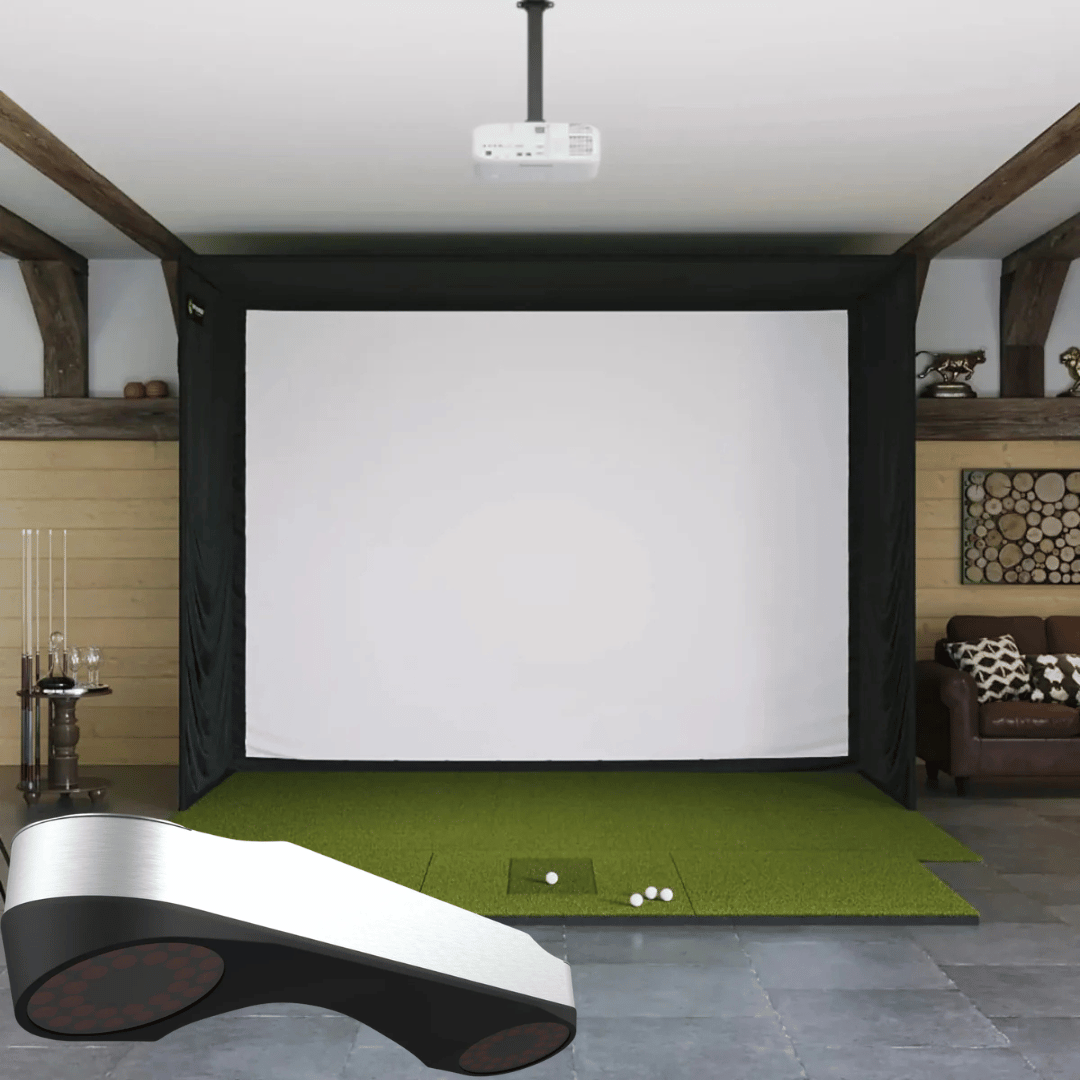

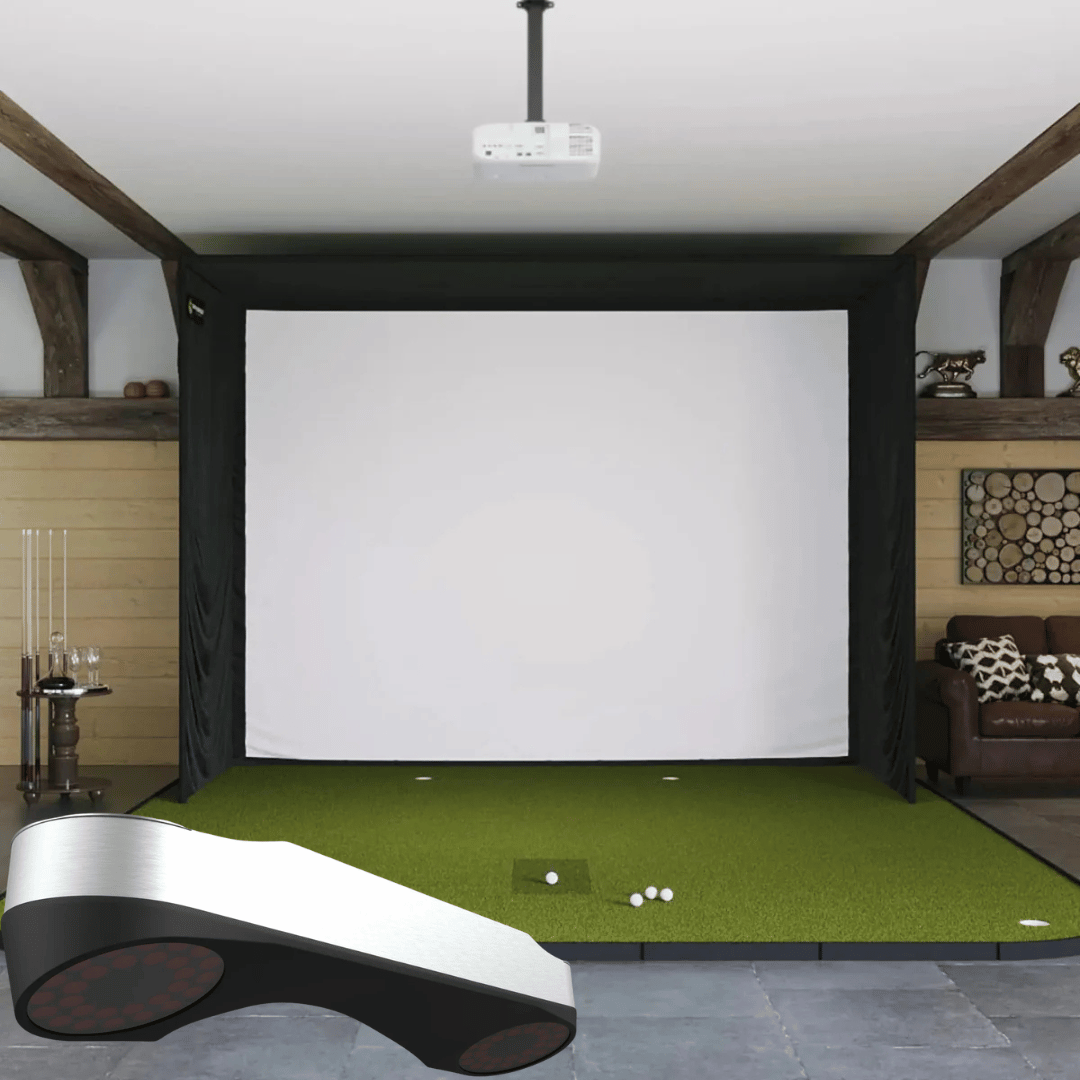

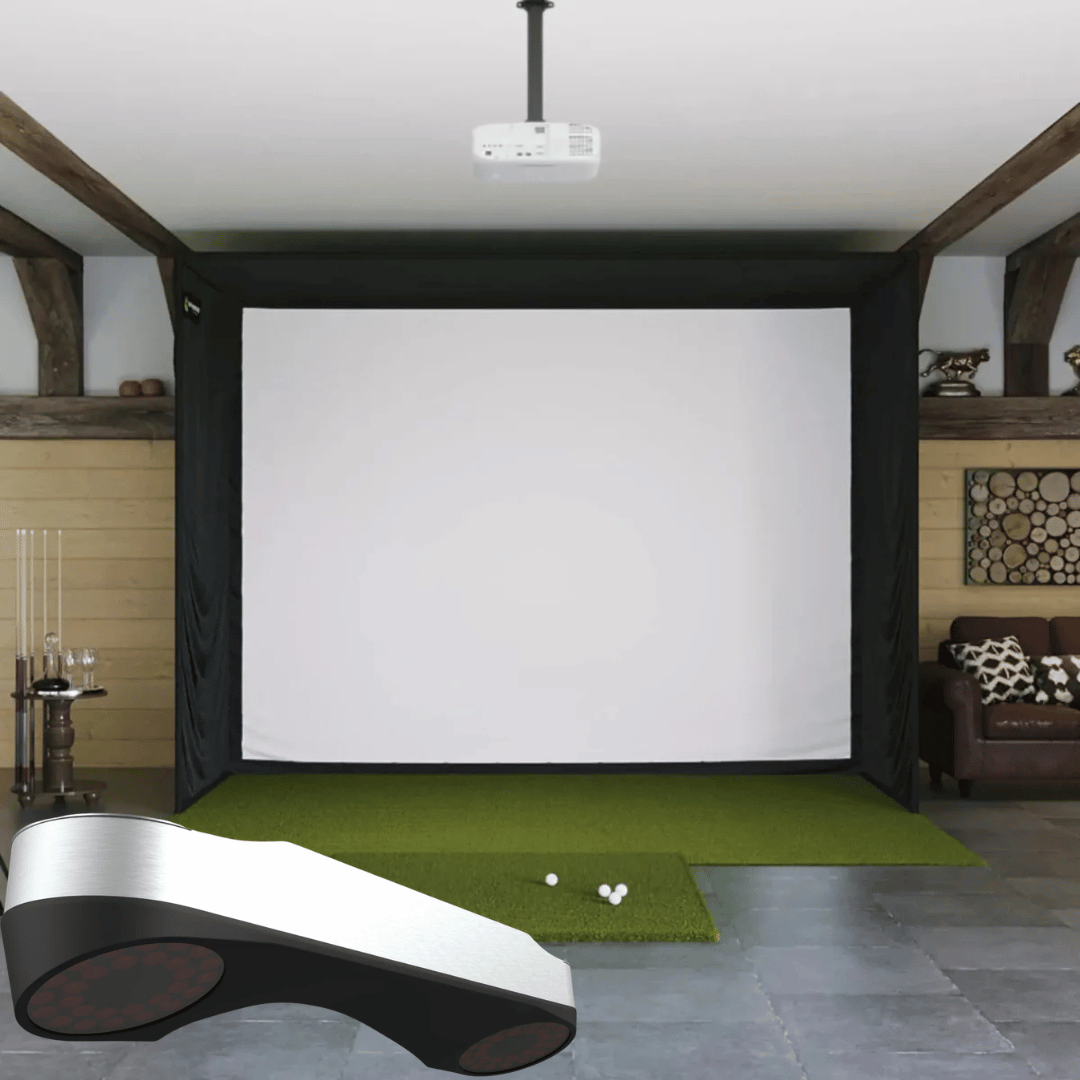

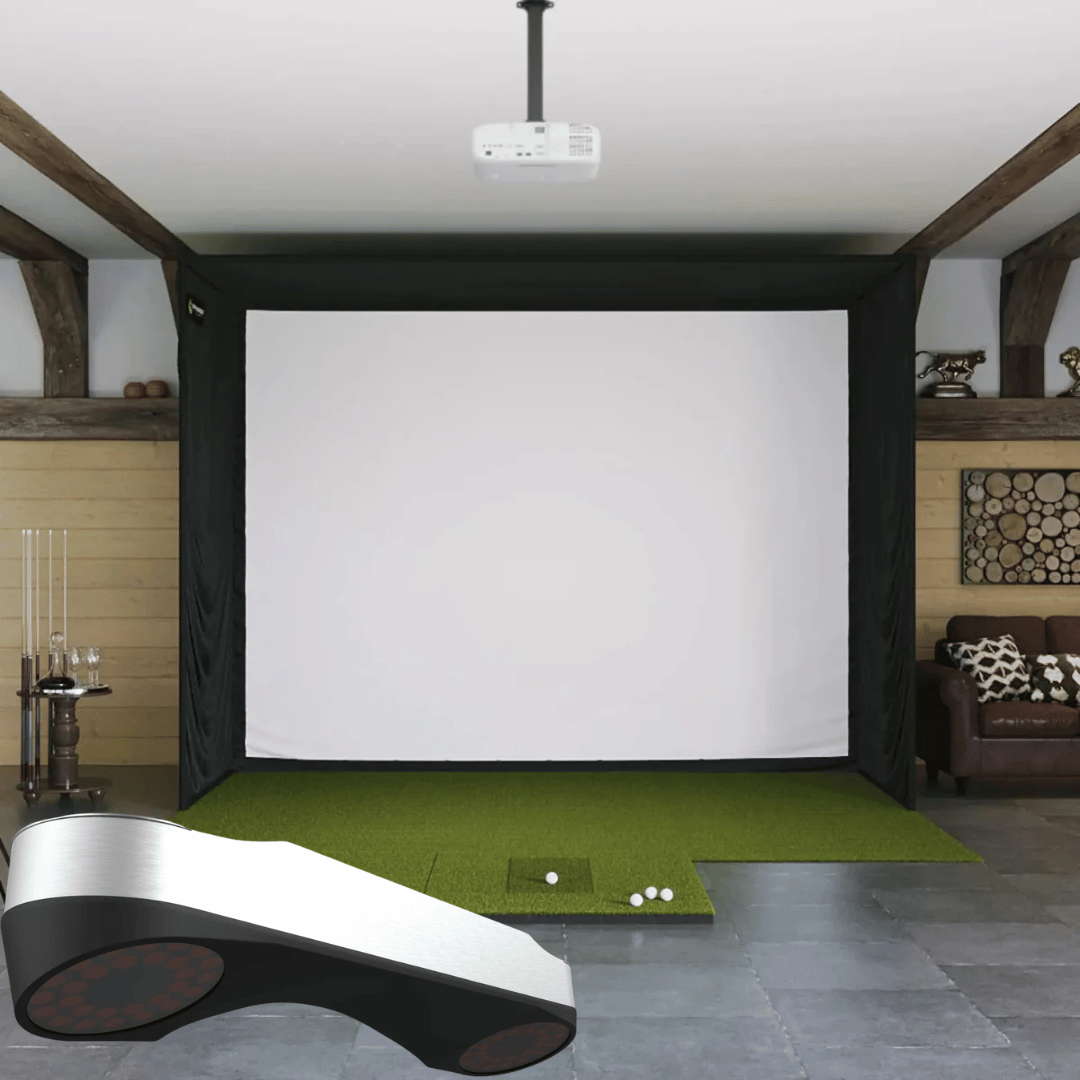

ProTee VX Golf Simulator - SIG12 Complete Package

The Biggest Screen in the SIG Lineup. A.I. Overhead Accuracy. Built for Serious Spaces.

The ProTee VX Golf Simulator Bundle — SIG12 is the flagship configuration: the ProTee VX Overhead Launch Monitor paired with the SIG12 Golf Simulator Studio — the largest enclosure in The Indoor Golf Shop's Signature Series. At 14'3" diagonal, the SIG12 delivers the most immersive projection in the lineup, with a 4:3 screen that fills 100% of the image and a 9'4" tall frame that commands the room. The ProTee VX brings A.I.-powered dual-camera accuracy within 1–2% of the GCQuad and Trackman 4 — ceiling-mounted, clean, and completely sticker-free.

Every ProTee VX order currently ships with 2 free swing cameras (a $700 value) — automatically added to your shipment. Capture multi-angle swing video alongside your full ball and club data, and pair it with the most screen real estate the SIG Series has to offer. If you have the space, this is the definitive home simulator build.

This bundle requires a minimum 10' ceiling. If your room qualifies, select your mat and projector at checkout — everything else is included.

Key Benefits

• ✔ Largest Screen in the SIG Series — 14'3" Diagonal
  The SIG12's 11'5" × 8'7" screen is the biggest in the lineup. 4:3 aspect ratio, 100% image fill, edge-to-edge gameplay with no letterboxing or wasted screen area.
• ✔ A.I.-Powered Dual-Camera Tracking — No Stickers, No Marked Balls
  The ProTee VX captures full ball and club data with any standard golf ball using onboard A.I. and dual high-speed cameras. No reflective dots, no club-face stickers, no proprietary equipment required.
• ✔ Accuracy Within 1–2% of GCQuad and Trackman 4
  Professional-grade data at a home simulator price — ball speed, spin rates, launch angle, club path, face angle, impact points, and more.
• ✔ 2 Free Swing Cameras Included — $700 Value
  Every ProTee VX order currently ships with two swing cameras at no extra cost. Automatically added to your shipment — no code needed. Review your swing from multiple angles alongside your shot data on the SIG12's full-size screen.
• ✔ Perpetual ProTee Labs Software License — No Annual Fee
  ProTee Labs ships with a lifetime license — real-time data, customizable displays, bag mapping, and A.I. improvements via automatic updates. No subscription required to use the hardware.
• ✔ Native GSPro Integration — No Connector Fee
  The ProTee VX connects to GSPro natively, saving approximately $250 per year versus systems that require a third-party connector.
• ✔ 9'4" Tall Frame — Maximum Overhead Clearance
  The SIG12 is the tallest enclosure in the SIG Series — giving taller golfers and high-swing players the most comfortable clearance of any SIG configuration.
• ✔ Ceiling-Mounted — Completely Open Hitting Area
  No floor unit to aim around, trip over, or accidentally clip. The SIG12's wider frame gives maximum lateral room, and the overhead ProTee VX keeps every inch of it clear.
• ✔ 4' × 10' Double-Sided Mat Compatible
  The SIG12's 12'2" width comfortably fits the 4'×10' double-sided mat — the center-tee option for households where lefties and righties share the same setup.
• ✔ Left- and Right-Handed Support Without Recalibration
  The ProTee VX automatically supports both handednesses — no repositioning, no recalibration when switching players.
• ✔ SIGPRO Premium Impact Screen — MyGolfSpy Independent Testing Winner
  Three-layer tight-knit polyester rated for 250 MPH ball strikes. Superior durability, quieter operation, and reduced bounce-back versus leading competitors.
• ✔ Instant Feedback — Under 1 Second
  Shot data appears on screen in under a second after impact. Ball flight responds with virtually no perceptible delay.
• ✔ Color-Coded, DIY-Friendly Assembly
  The SIG12 uses the same push-pin poles and color-coded connector system as the rest of the SIG Series — straightforward setup without professional help.

Who Is This For?

• ✅ Golfers with a dedicated simulator room, large garage, or basement with 10'+ ceilings who want the maximum SIG experience
• ✅ Taller players or those with high backswings who want maximum overhead clearance from both the enclosure and the ceiling
• ✅ Those who want the most immersive projection possible — 14'3" diagonal, full 100% image fill
• ✅ Lefty/righty households who want both seamless monitor switching (ProTee VX) and double-sided mat capability (SIG12)
• ✅ Players who want swing video alongside shot data — the included cameras add an analysis layer most bundles don't offer
• ✅ GSPro users who want native integration without a connector fee
• ✅ Anyone building a high-end home simulator and wants it done right the first time

What's in This Bundle

Hitting Mat Options

Select your hitting surface at checkout. Because the ProTee VX is ceiling-mounted, any mat option works without clearance concerns for a floor unit. The SIG12's 12'2" width accommodates the full mat lineup including the 4' × 10' double-sided option.

Projector Options

A projector is not required to use the ProTee VX — you can run ProTee Labs on a standard monitor or TV. To take full advantage of the SIG12's 14'3" diagonal screen, a short-throw projector is strongly recommended. At this screen size, the difference between 1080p and 4K is most visible — a 4K projector is worth serious consideration.

The SIG12 screen has a 4:3 aspect ratio, producing 100% image fill with a standard projector — no letterboxing, no wasted screen area. Select your projector at checkout.

Ceiling Layout Tip: The ProTee VX unit measures 83cm × 20cm × 17cm and mounts via a dedicated plate. Plan your ceiling layout before drilling so both the ProTee VX and your projector mount have adequate clearance side by side.

ProTee VX — What's Measured

Technical Specifications

ProTee VX Launch Monitor

SIG12 Golf Simulator Studio Enclosure

PC Requirements (for ProTee VX)

Software & Simulator Compatibility

Included with ProTee VX (Perpetual License — No Annual Fee):

• ProTee Labs — Full-featured virtual golf and shot analysis software with real-time data display, bag mapping, customizable layouts, and A.I.-powered tracking improvements via automatic updates

Third-Party Simulator Compatibility:

• GSPro — Native integration, no connector fee
• TGC 2019
• E6 Connect

Third-party software requires its own separate license. The ProTee VX does not charge additional fees to connect to GSPro — saving approximately $250/year versus systems that require a third-party connector.

What's Included

• ProTee VX Launch Monitor
• ProTee Labs Software (Perpetual License)
• 2 Free Swing Cameras ($700 value — current promotion, automatically included)
• Calibration Board
• USB to Ethernet Adapter
• 10m UTP Cat6 Network Cable
• US Power Cord
• Mounting Plate and Screws
• SIG12 Enclosure Frame — Powder-coated steel with color-coded push-pin assembly
• SIGPRO Premium Impact Screen — 11'5" × 8'7", MyGolfSpy-tested, double-stitched with grommets
• SIG Surround — Vinyl wrap for finished appearance
• 6" Ball Bungees — Screen and surround mounting
• Landing Pad Turf — Floor protection between screen and mat
• Protective Foam Padding — All sides of frame
• Side Barrier Netting
• Push-Pin Poles & Connectors (color-coded)
• Choice of Hitting Mat (Fairway 5'×5', SIGPRO Softy 4'×7', SIGPRO Softy 4'×10', or Simulator Flooring)
• Optional Projector (if selected at checkout)
• Assembly Manual & Video Access

What's NOT Included

• Projector (unless selected at checkout)
• Projector mount and cables
• Computer / PC for running software
• Simulator software — GSPro ($250/yr), E6 Connect, etc. sold separately

Space & Installation Requirements

Important — Ceiling Height Note: The SIG12 requires a minimum 10' ceiling. Please confirm your finished floor-to-ceiling measurement before ordering. For ceilings of 10'6" or higher there is no concern. If your ceiling is exactly 10', contact us at (770) 766-5571 — we're happy to confirm ProTee VX mounting compatibility for your specific room before you purchase.

Assembly

ProTee VX Installation:

1. Mount the ceiling plate at the appropriate position above and in front of the hitting area
2. Attach the ProTee VX unit to the mounting plate
3. Run the Cat6 cable from the unit to your PC (USB to Ethernet adapter included)
4. Connect power cord to a standard outlet
5. Install ProTee Labs software and run the calibration process using the included calibration board
6. Mount swing cameras at desired positions
7. Start hitting

SIG12 Enclosure Assembly (Approx. 1–2 Hours with Two People):

1. Assemble frame using color-coded poles and push-pin connectors
2. Attach vinyl SIG Surround to frame
3. Mount SIGPRO Premium screen using included ball bungees
4. Install protective foam padding on all sides
5. Attach side barrier netting
6. Position landing pad turf and hitting mat

Tools Required: Basic hand tools; step stool recommended. Assembly manual PDF and video walkthrough included for both components.

SIG8 vs. SIG10 vs. SIG12 — Which Enclosure Is Right for You?

Choose SIG8 if space is your primary constraint — fits rooms as narrow as 9' wide. The ProTee VX handles left/right switching automatically regardless of enclosure size.

Choose SIG10 if you have a standard garage or basement (11'+ wide, 9'+ ceiling) and want 100% image fill and the 4'×10' mat option — the best value step-up from the SIG8.

Choose this SIG12 bundle if you have 13'+ room width and 10'+ ceilings and want the largest, most immersive simulator experience the SIG Series offers — the biggest screen, the tallest frame, and maximum overhead clearance. The flagship configuration.

Shipping, Returns & Refund Policy

Shipping: The SIG12 Studio ships in 7–10 business days. Free shipping within the contiguous United States. The ProTee VX is currently on a 4+ week backorder — your order is fulfilled in the order received. We will keep you updated on your order status.

SIG12 Studio Returns: 30-day hassle-free return policy. Customer responsible for return shipping costs. A 15% restocking fee applies.

⚠ ProTee VX — All Sales Final: The ProTee VX Launch Monitor is not eligible for return or refund except in cases of transit damage or lost shipment. Please review all room size requirements, computer requirements, and product specifications carefully before purchasing — especially the 10' ceiling requirement for the SIG12. If you have questions, contact us at (770) 766-5571 before placing your order.

Frequently Asked Questions

Does the ProTee VX require club stickers or special balls?
No. The ProTee VX uses A.I.-powered markerless tracking with any standard golf ball. No stickers, no marked balls, no proprietary equipment needed. For best spin tracking results, balls with bold logos or alignment lines (such as Titleist Pro V1 or TaylorMade Pix) are recommended.

What ceiling height does the SIG12 require?
A minimum of 10' ceiling height is required — the SIG12 frame is 9'4" tall and needs clearance for a full swing. Please confirm your finished floor-to-ceiling measurement before ordering. Ceilings of 10'6" or higher are ideal. For exactly 10' ceilings, contact us at (770) 766-5571 to confirm ProTee VX mounting compatibility before purchasing.

Is the ProTee VX eligible for return?
No — the ProTee VX is all sales final. Returns are only accepted for units damaged in transit or lost by the carrier. Please review all specifications and requirements carefully — including the 10' ceiling requirement — before purchasing. The SIG12 Studio portion of this bundle is covered by the standard 30-day return policy.

How long is the backorder wait for the ProTee VX?
The ProTee VX is currently on a 4+ week backorder. Orders are fulfilled in the order received. Golf Sim Depot will keep you updated throughout the process.

Are the 2 free swing cameras always included?
The swing cameras are part of a current promotion and are automatically added to your shipment at no extra cost — no code needed. Contact us to confirm this promotion is still active at the time of your order.

Does the SIG12 produce full-screen projection?
Yes. The SIG12's 4:3 aspect ratio fills 100% of the projected image from a standard projector — no letterboxing, no black bars. The 14'3" diagonal screen is the largest in the SIG Series.

Is a 4K projector worth it for the SIG12?
Yes — more so than with any other SIG enclosure. At 14'3" diagonal, the increased pixel density of 4K is visible and meaningful. The AK700ST or LK936ST are both strong matches for this screen size.

Can left- and right-handed players both use this setup?
Yes — two ways. The ProTee VX handles left/right switching automatically with no recalibration. The SIG12 also fits the 4'×10' double-sided mat for true alternating tee positions at mat level.

Does the bundle include a projector?
A projector is optional — select your preferred model at checkout, or choose "No Projector" if you already own one. The ProTee VX captures all shot data independently of the projector.

What simulator software can I use?
The ProTee VX integrates natively with GSPro (no connector fee), TGC 2019, and E6 Connect. ProTee Labs — included with a perpetual license — also offers its own full virtual golf and driving range experience. Third-party software licenses are sold separately.

How accurate is the ProTee VX?
The ProTee VX delivers data within 1–2% of industry benchmarks like the GCQuad and Trackman 4. Ball speed, spin, launch angle, club path, and face angle are all captured at professional-grade accuracy.

What's the warranty on the ProTee VX?
The ProTee VX carries a 1-year limited warranty from ProTee United B.V. covering defects in materials and workmanship under normal use. The SIG12 Studio is covered under The Indoor Golf Shop's standard warranty. Contact Golf Sim Depot at (770) 766-5571 for warranty support on either component.

Can I use a Mac?
No. The ProTee VX requires Windows 10 or Windows 11. macOS, Linux, iOS, and Android are not supported. NVIDIA Quadro graphics cards are also not supported.
